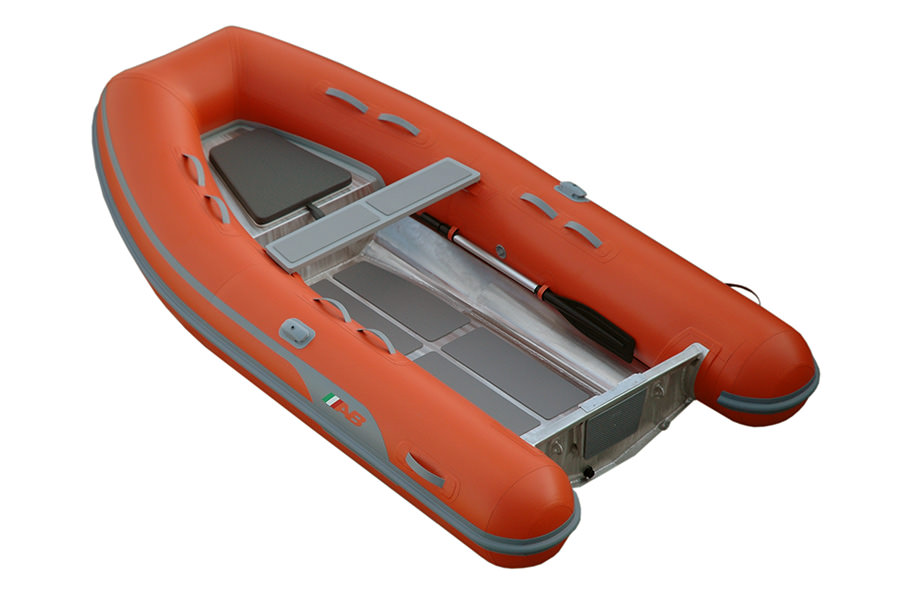

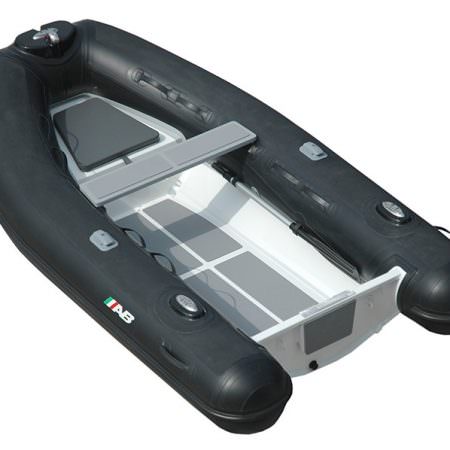

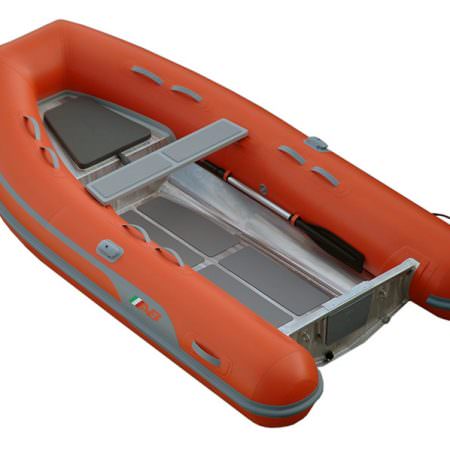

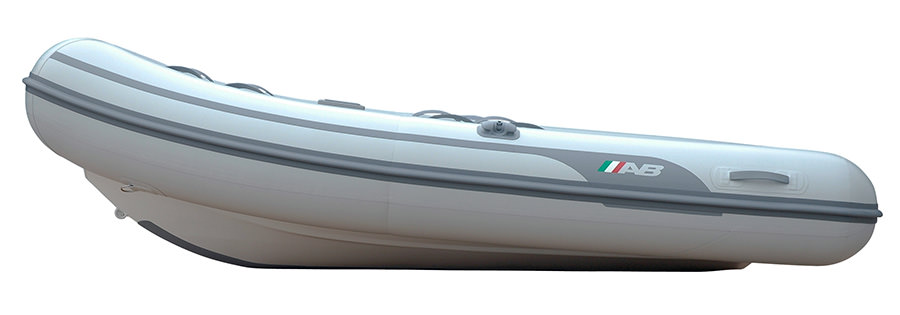

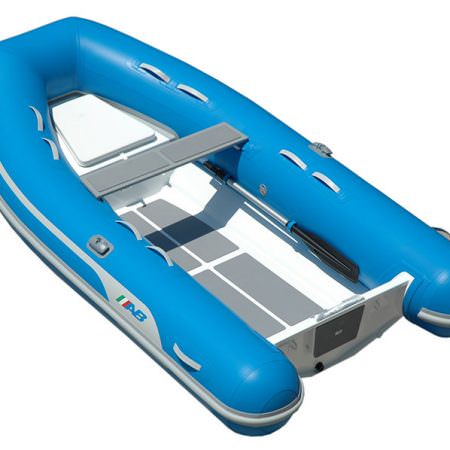

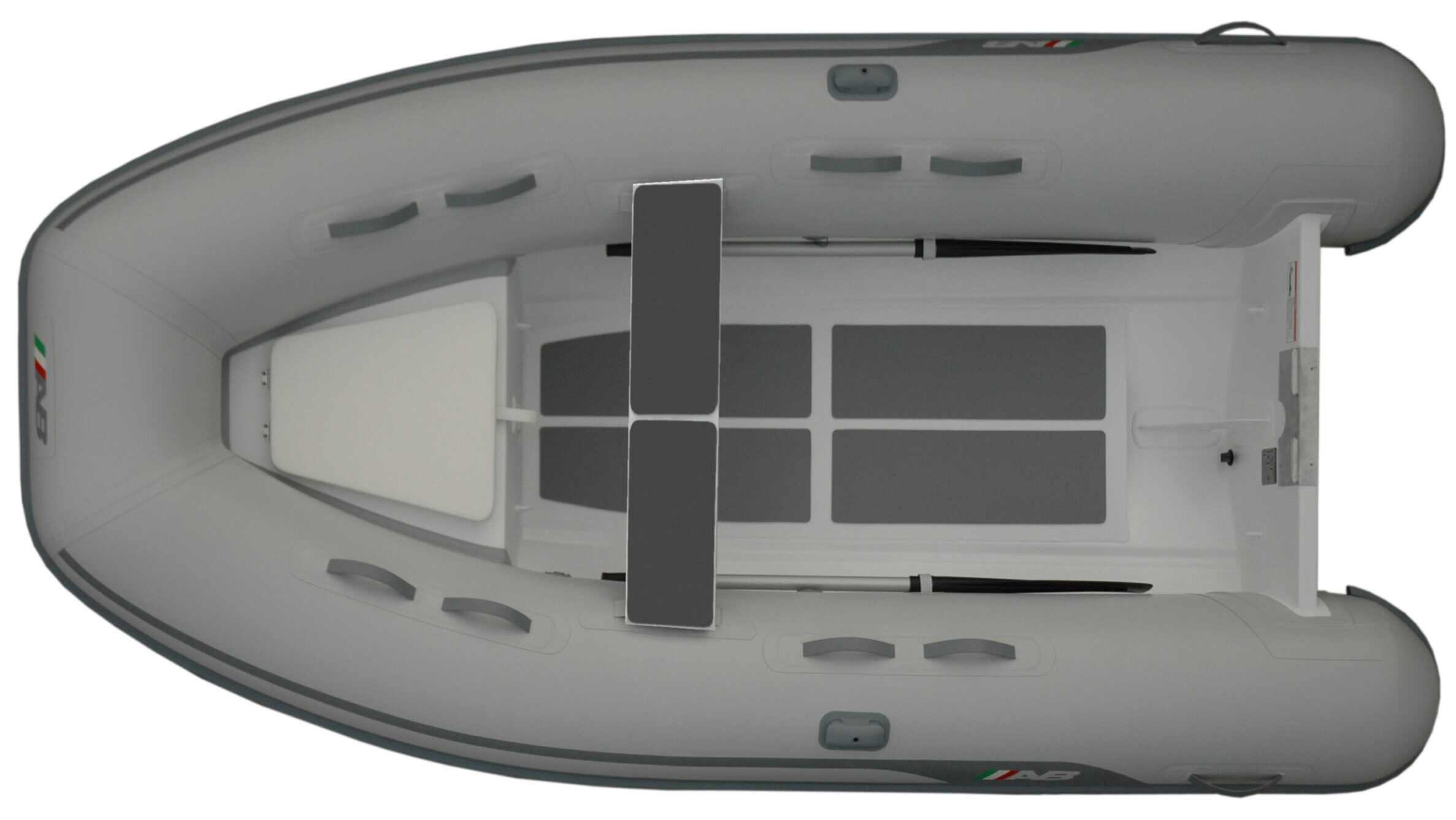

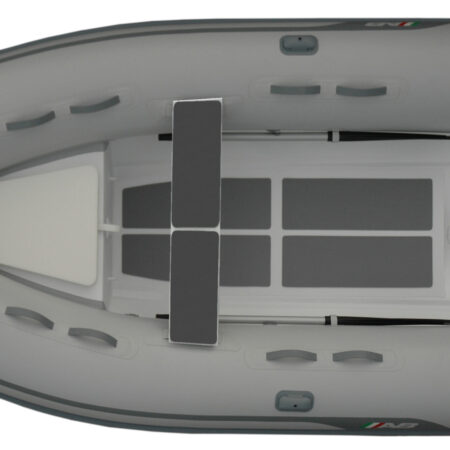

Lammina AL
10 AL
ALUMINUM TENDERS
World-renowned, innovative design created to fit your needs.
Learn more
Key Features
- Ventilation on Bow Locker
- Large Square Transom Alum. Reinforced Base
- More Payload Capacity
- More Internal Area
- Optional B.Locker - 6 Gal portable F. tank
- Aluminum Removable Rowing Seat
- New Chrome Free - Advanced Pretreatment and Powder Coating Technology
- Ultra High Quality Welding
- Bow U bolt and lateral towing eyes
- Single Solid Rubrail

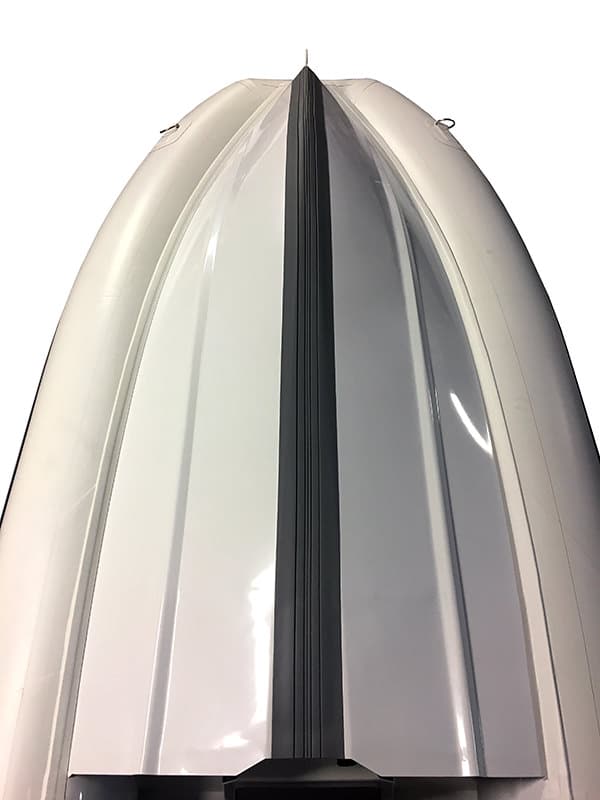

- New Heavy Duty Keel Protector
- "V" Hull
- ORCA (CSM) Coated Fabric
- Sunbrella Fabric Dinghy Chap Available
- Sunbrella Fabric Boat Cover Available

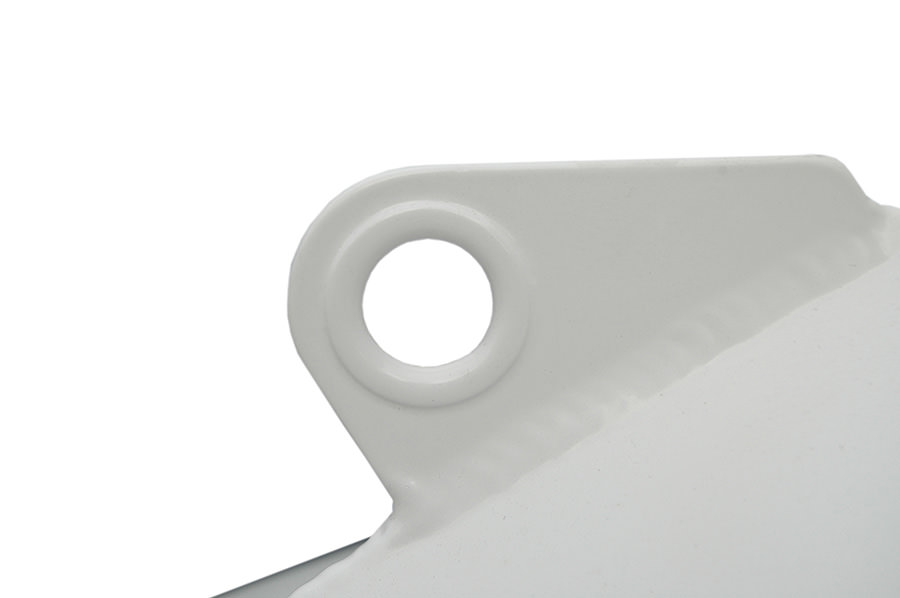

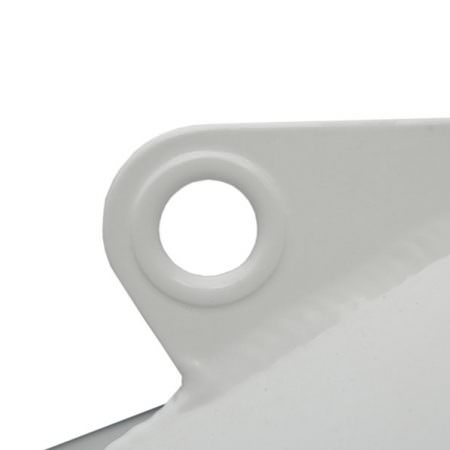

- Reinforced Alum. Lifting Eyes with SS Rings
- Internal Aluminum Plate with Security Lip
- Reinforced (CSM) Fabric Handles
- Non-skid Rubber Floor
- Reinforced Alum. Transom Towing Eyes w/ SS Rings
- Reinforced Alum. Transom Tie Downs w/ SS Rings
- Custom Colors Upon Request
Specs
- Overall length10' 6" /3.19m
- Overall Beam 5' 6"/ 1.68m
- Inside Length 7' 6"/ 2.30m
- Inside Beam 2' 8" /0.81m
- Tube Diameter 17" /0.43m
- Number of Chambers 3
- Person Capacity 5
- Weight 131lb / 59kg
- Weight with Bow Locker 144lb / 65kg
- Recommended HP 10 hp / 7.5 kw
- Maximum HP 20 hp / 14.9 kw
- Shaft length 15" / 38.1 cm
- RDC Design Category C
- Aluminum Hull Thickness 0.125 in / 3.18mm
- Aluminum Transom Thickness 0.190 in / 4.78mm
Standard Equipment
- Deep “V” Marine Grade Aluminum Hull
- Heavy Duty Transom Knee
- Stringer System Welded Under Aluminum Deck
- Non-Skid Rubber Floor Panels
- Plastic External Transom Plate
- Aluminum Internal Transom Plate with Security Lip
- Aluminum Bow Eye
- 3-4 Aluminum Davit Lifting Points
- Aluminum Transom Tie Down & Towing Rings
- Deck Drain with Plug
- Orca (CSM) Five Layer Coated Fabric
- Raised Single Rub Rail
- Push Push Plastic Non-Corrosive 2 Stage Inflation Valves
- 1 Front & 2 Side Orca (CSM) Fabric Handles on Tubes
- 2 Inside Bow Sets of Double Orca (CSM) Fabric Handles on Tubes
- 2 Inside Stern Single Orca (CSM) Fabric Handles on Tubes
- Removable Rowing Seat
- Oarlock Base
- Telescopic Oars with Aluminum Shaft
- Paddle Holders
- Hand Pump
- Maintenance Kit
- Owner's Manual
- 3 Layers Reinforced Seams
- Rubber Protector on Full Length of Keel
Optional Equipment

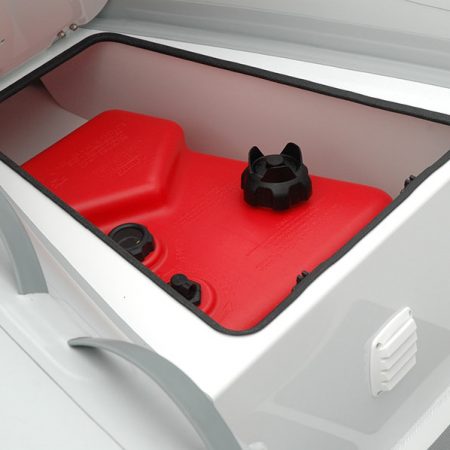

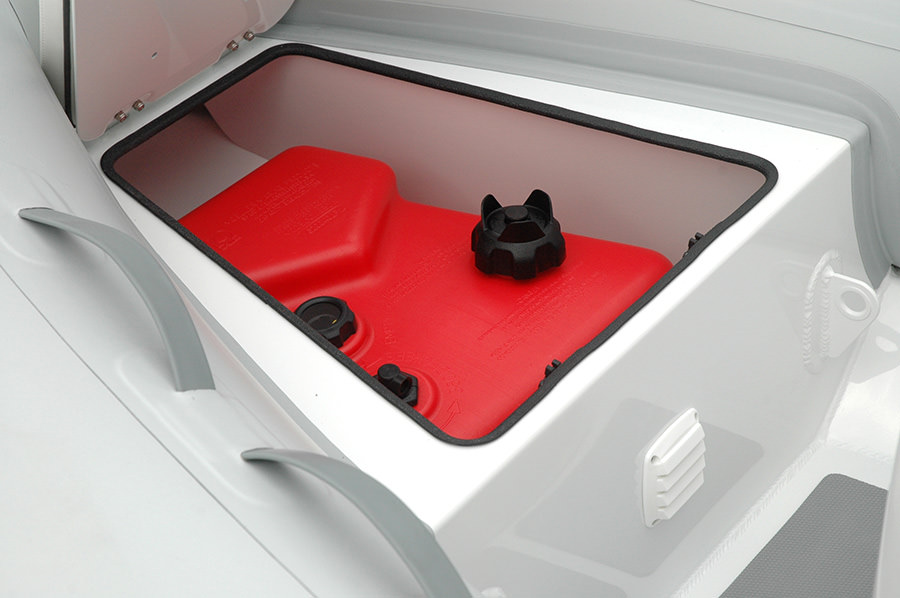

- Bow Locker/Seat with Vent & Storage to Fit a 6 Gal Portable Fuel Tank
- Portable 6 gal Fuel Tank Installed in Bow Locker with Fittings
- Tube Chaps
- Boat Cover
- Chock Set
- Bow Step with Fold Down Stainless Steel Cleat
- Lateral Fold Down Stainless Steel Cleat
- Removable Stern Seat
- Fiberglass Console
- Bench Seat with Storage
- One Person Jockey Seat
- Two Person Jockey Seat
- Stainless Steel Helm Unit
