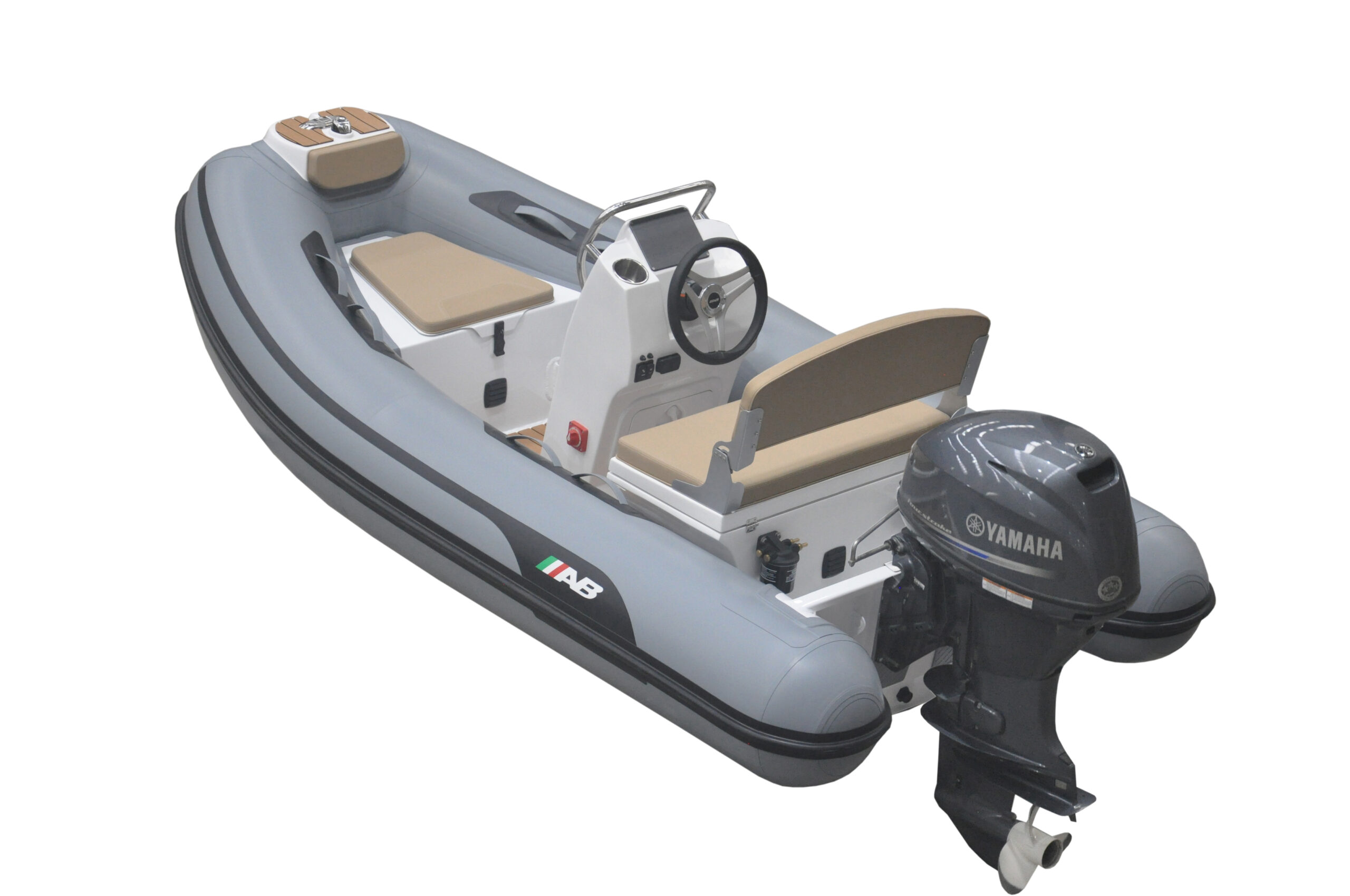

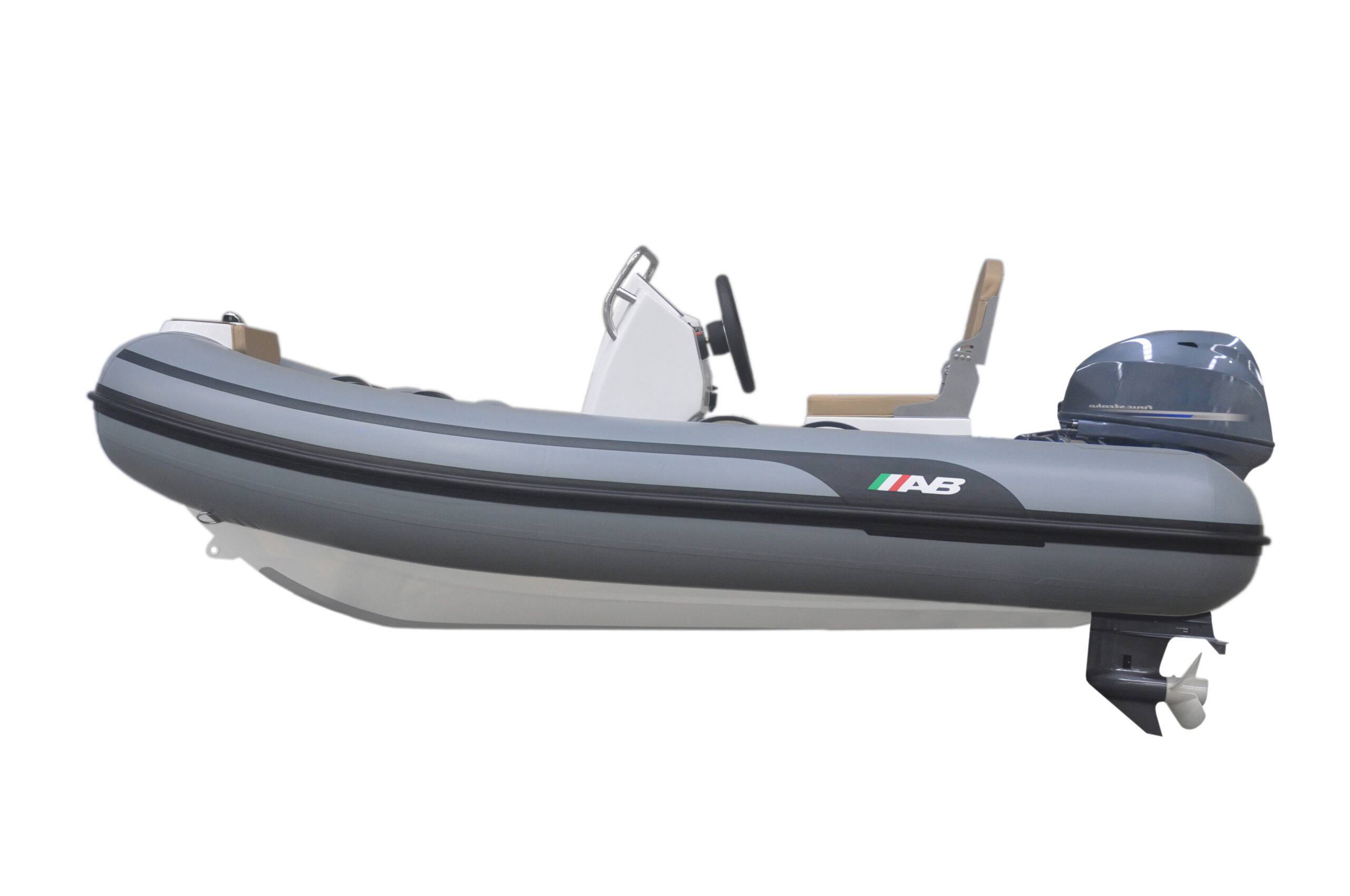

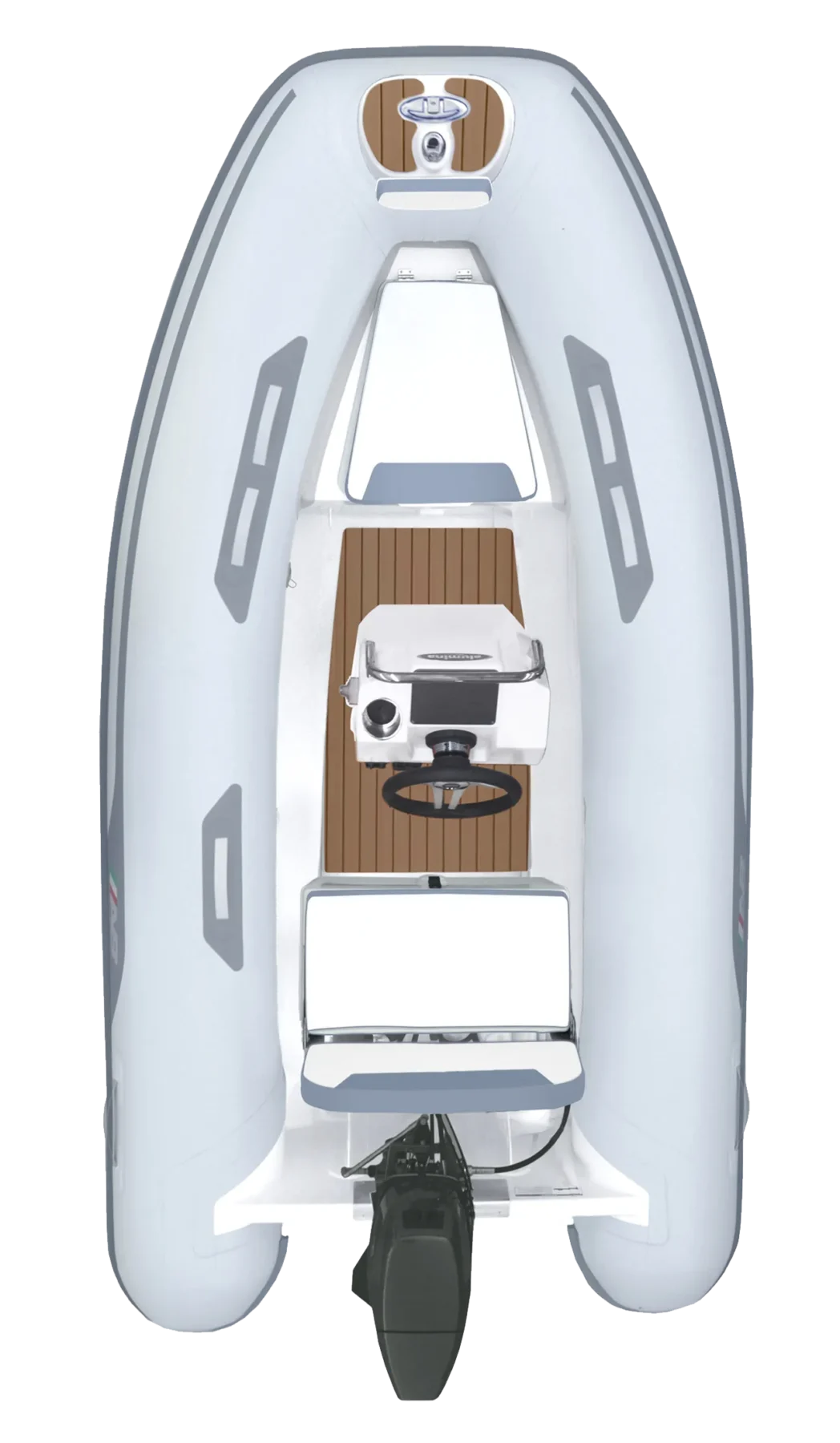

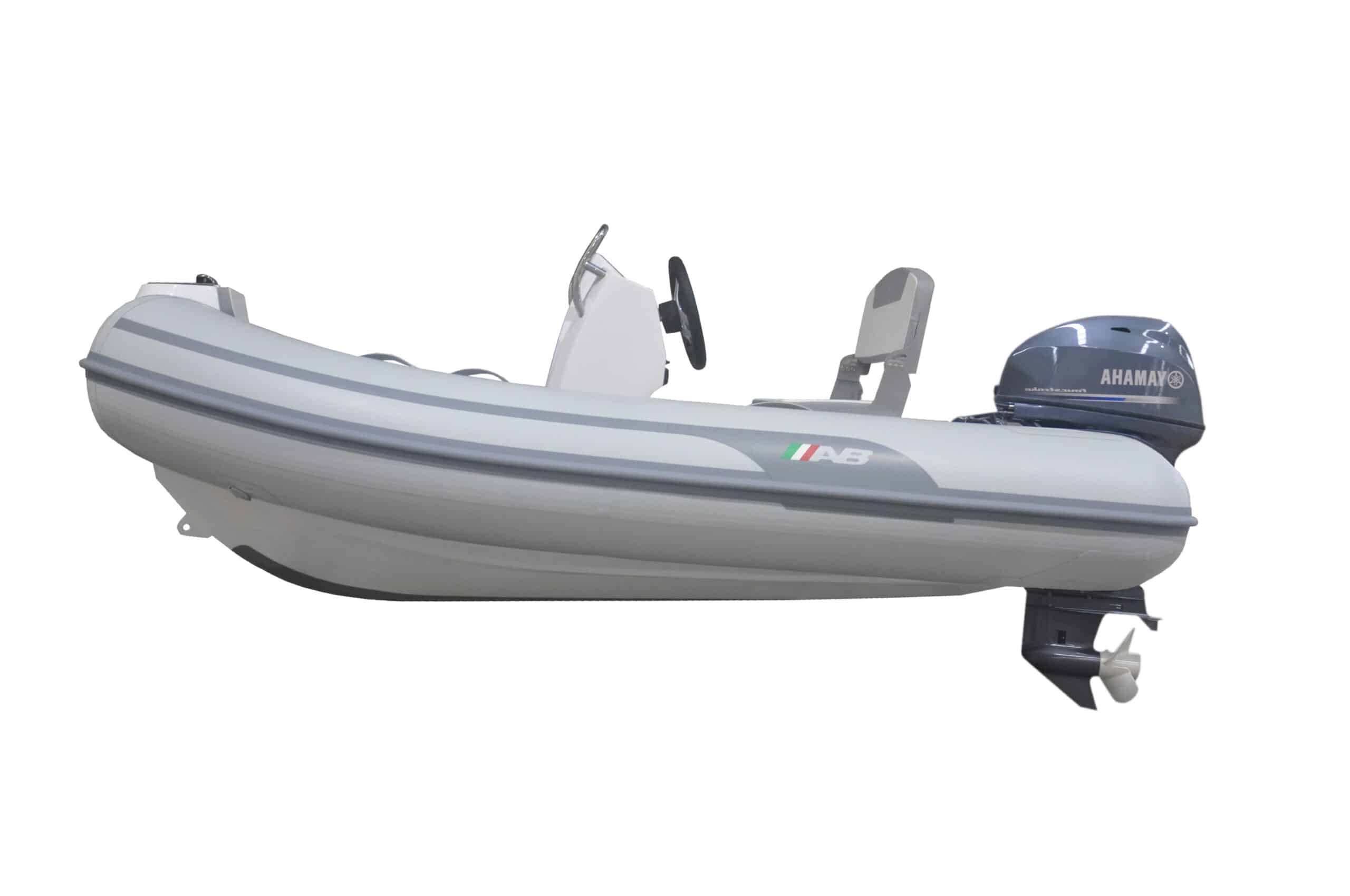

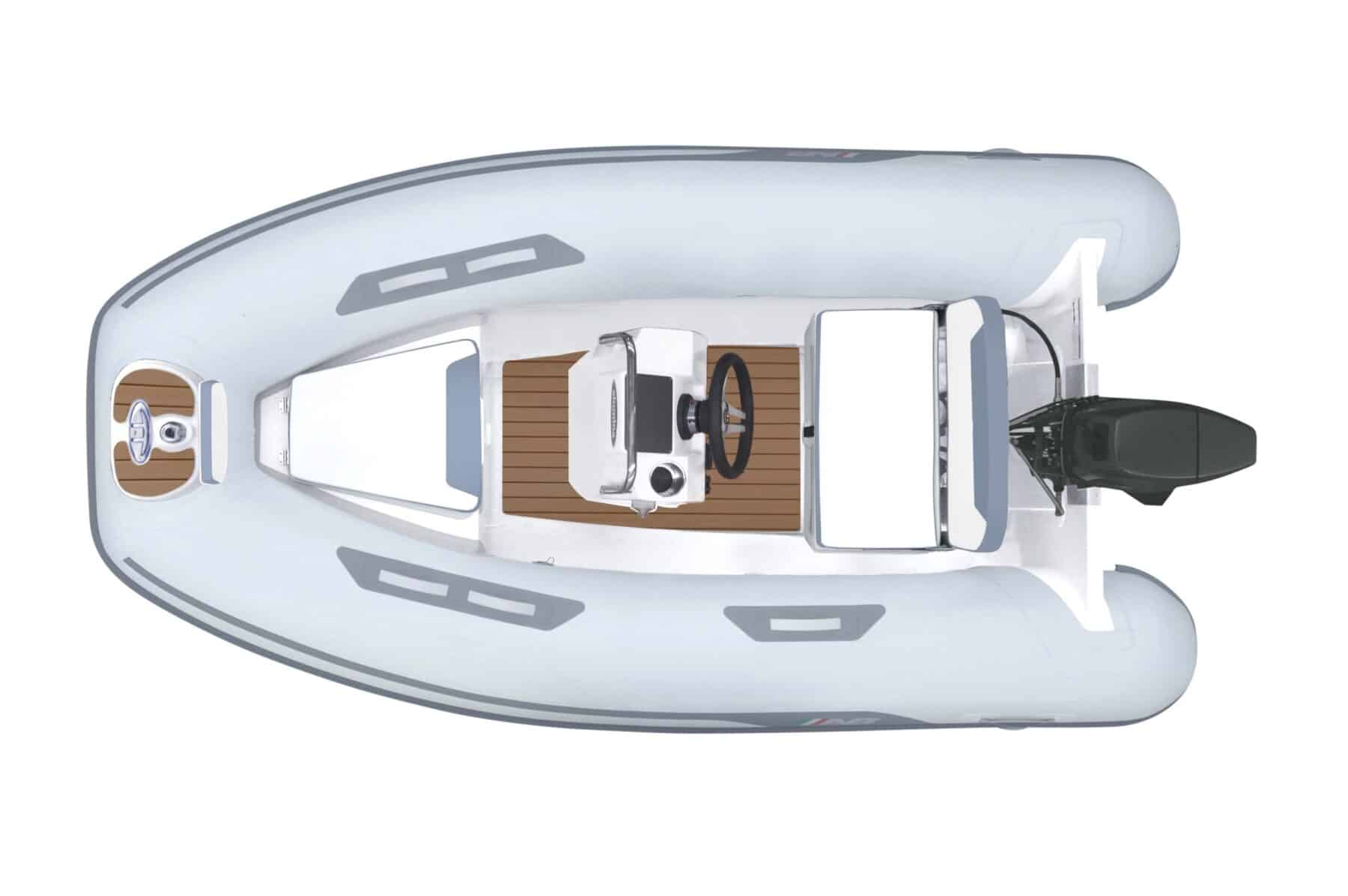

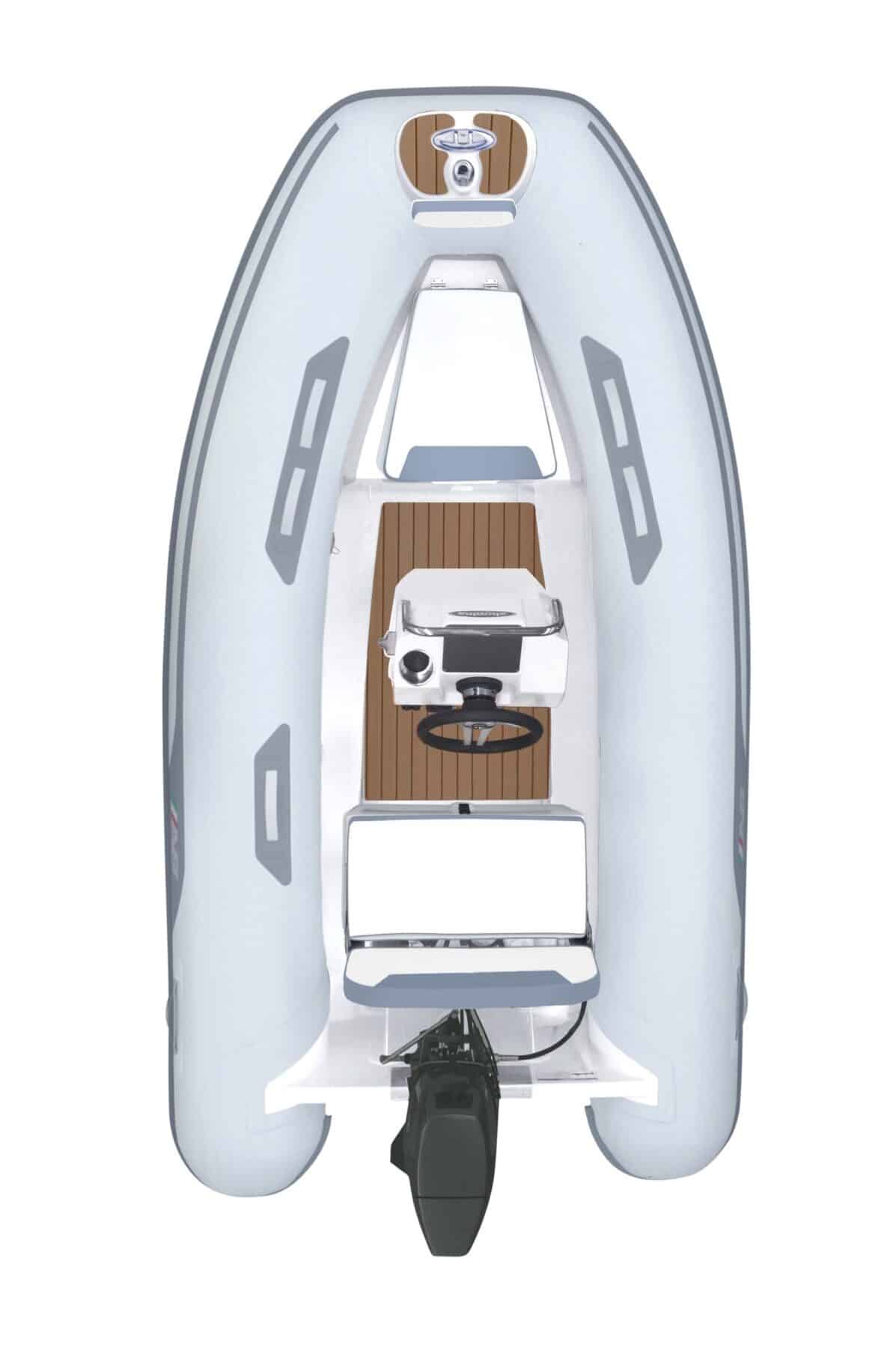

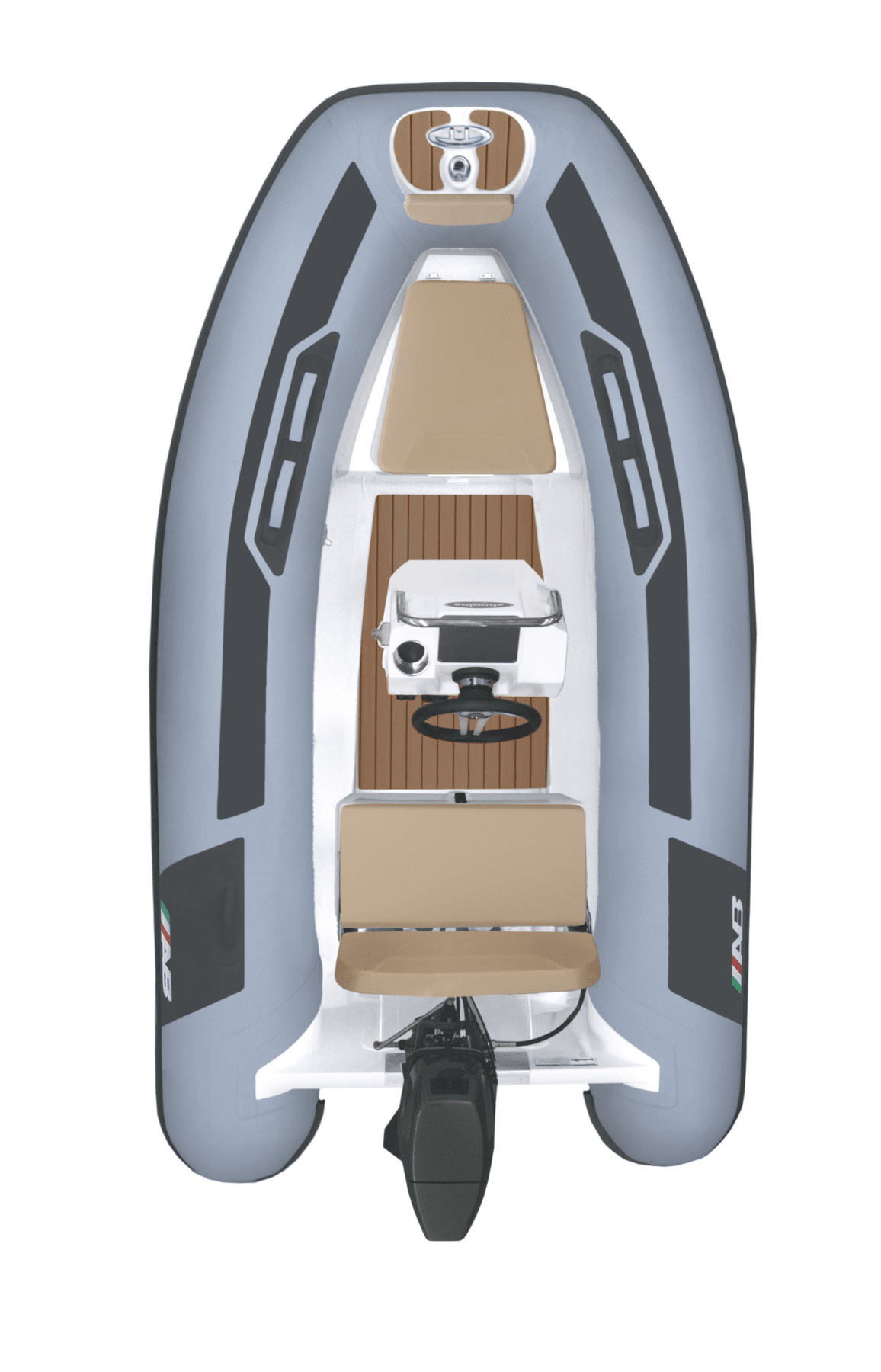

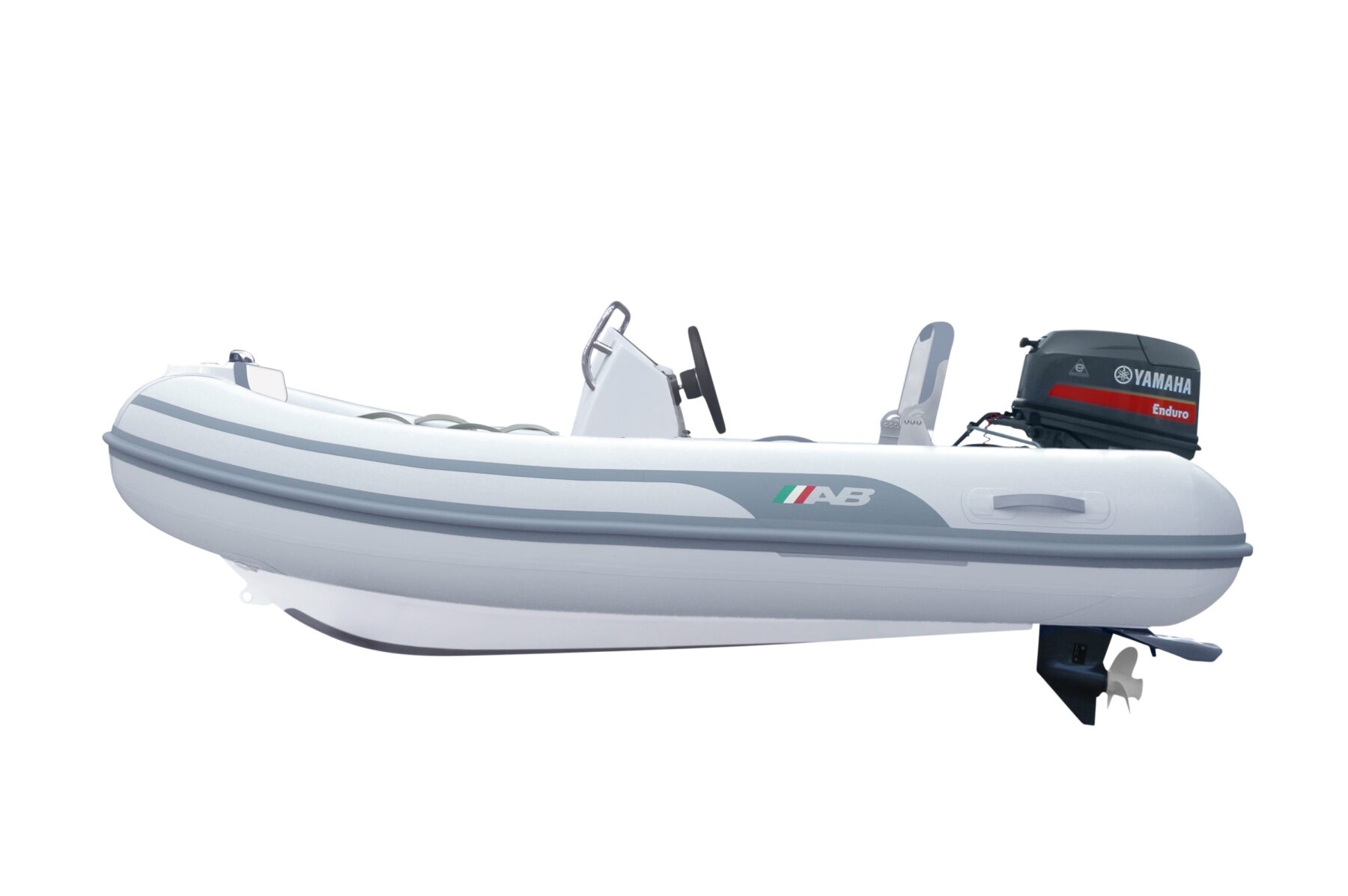

Alumina

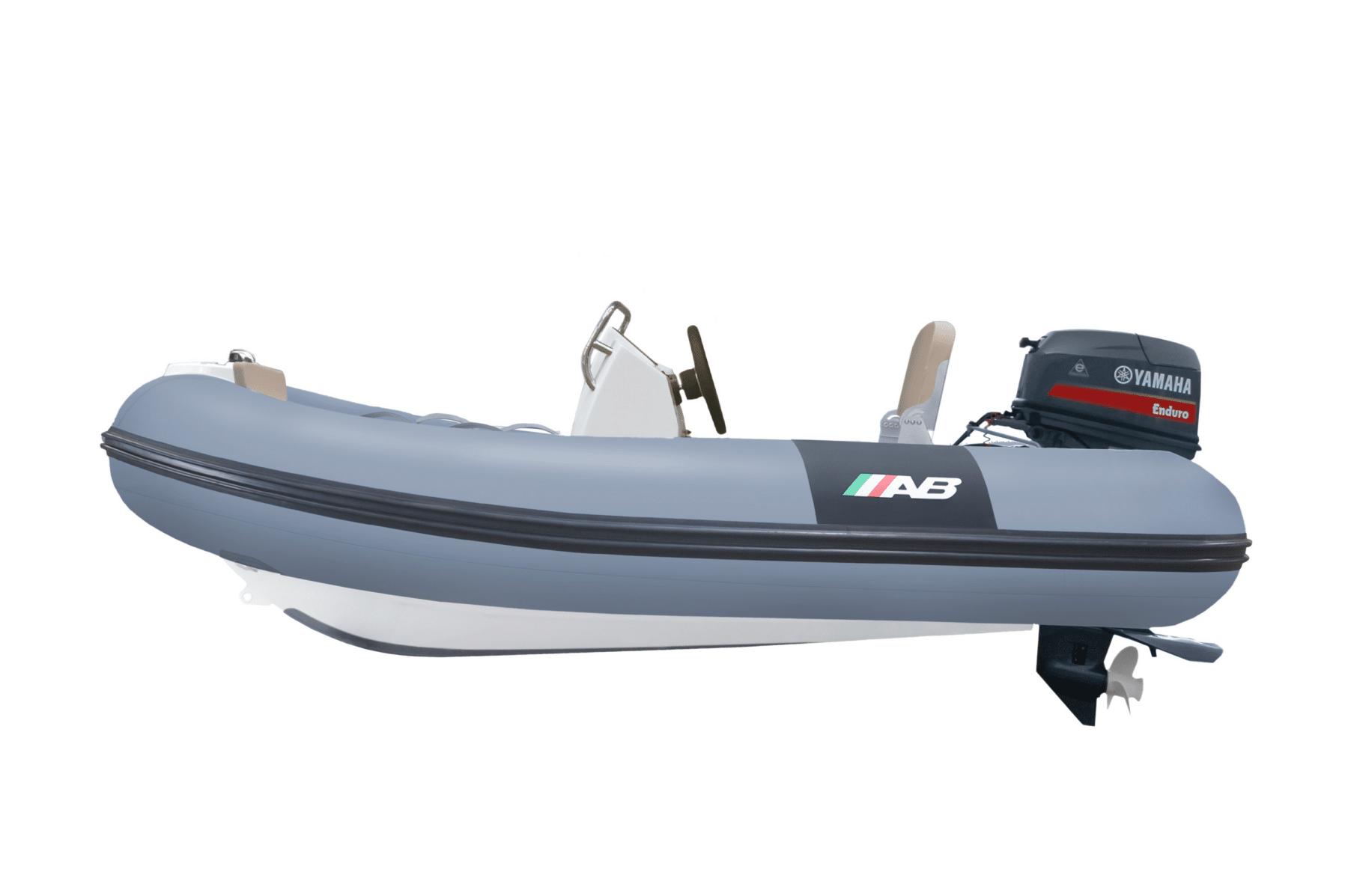

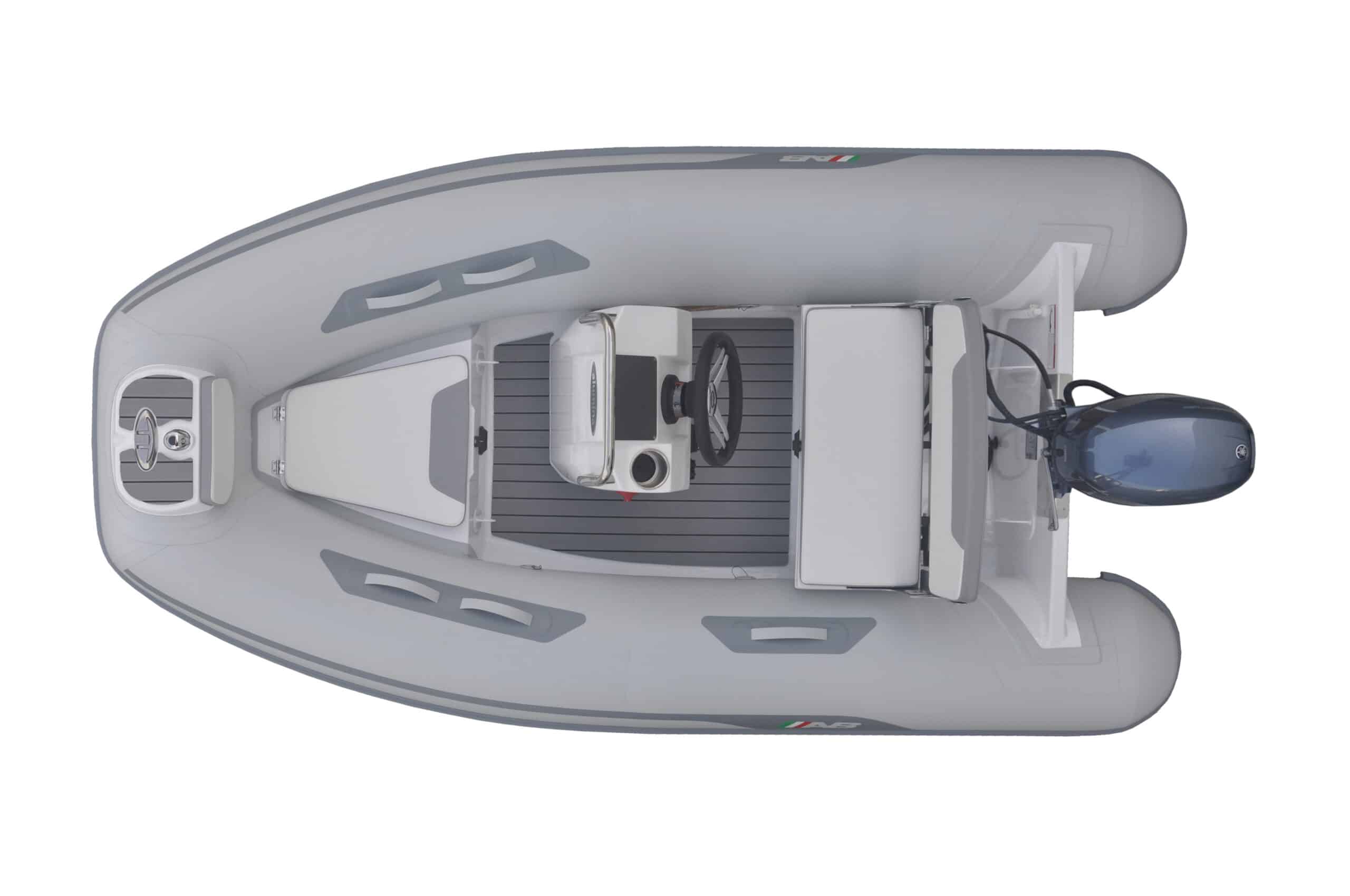

9.5 ALX
ALUMINUM CONSOLE TENDERS
Versatile, durable, and designed for the adventurous.
Learn more
Key Features

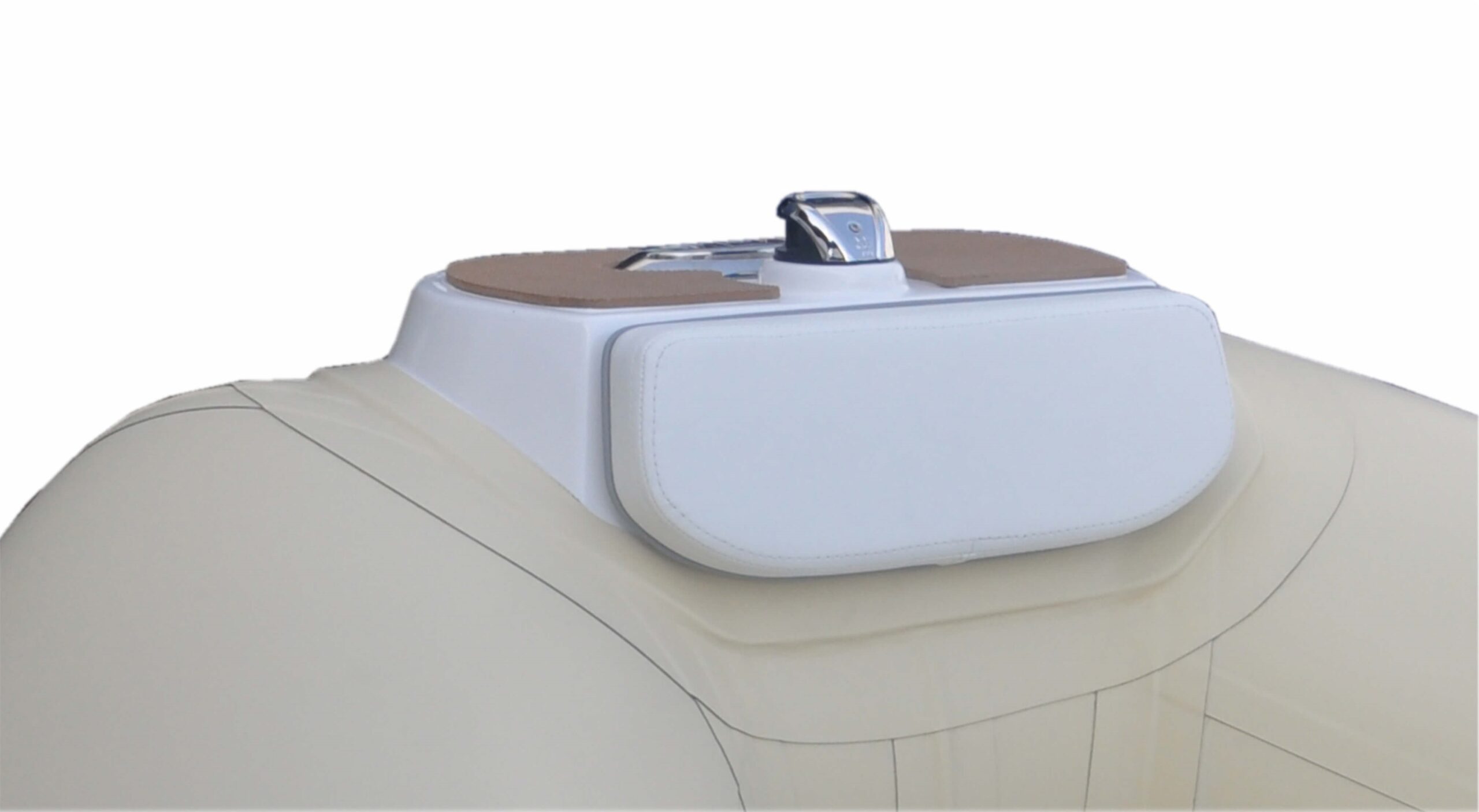

- Bow Step with Cushion, Fold Down Stainless-Steel Cleat & LED Navigation lights
- SEADEK® FOAM TEAK

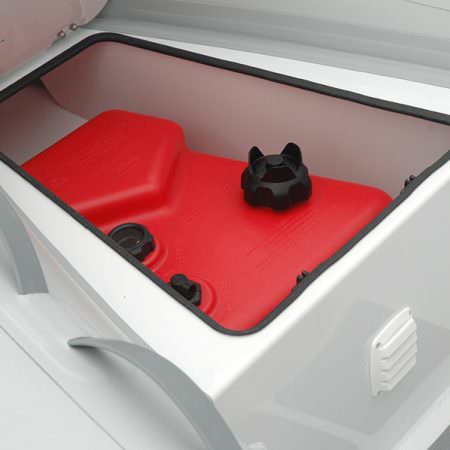

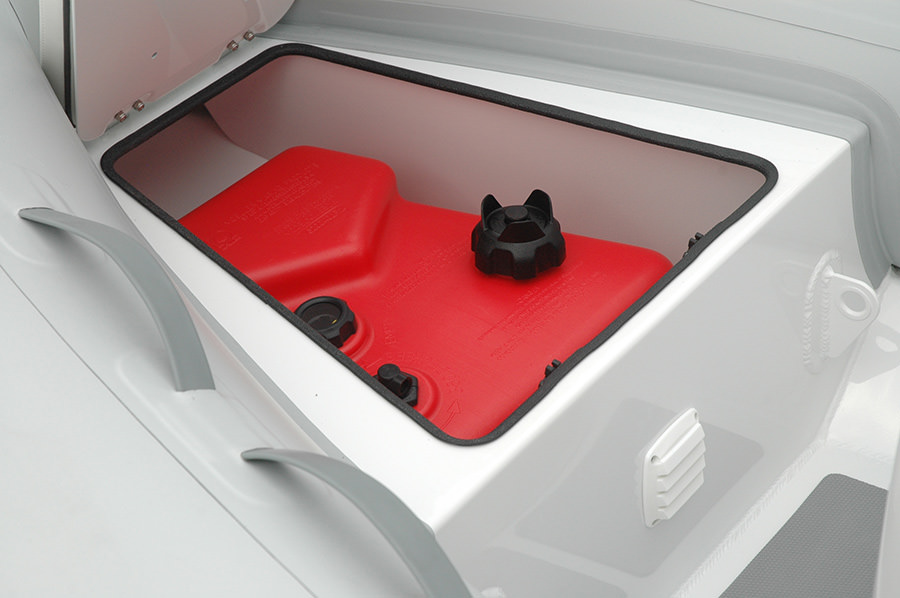

- Bow Locker with Storage to Fit a 6 Gal Portable Fuel Tank
- Mechanical Steering System - Installed from factory
- SS Wheel - Installed from factory
- LED Navigation - Installed from factory
- All Around Anchor Lights - Installed from factory
- Battery Master Switch - Installed from factory
- Bilge Pump - Installed from factory
- Fuel/Water Separator & Canister - Installed from factory
- SS Gas Springs on rearseat
- Ventilation on Bow Locker
- Large Square Transom Alum. Reinforced Base
- New Chrome Free - Advanced Pretreatment and Powder Coating Technology
- Ultra High Quality Welding
- Single Solid Rubrail

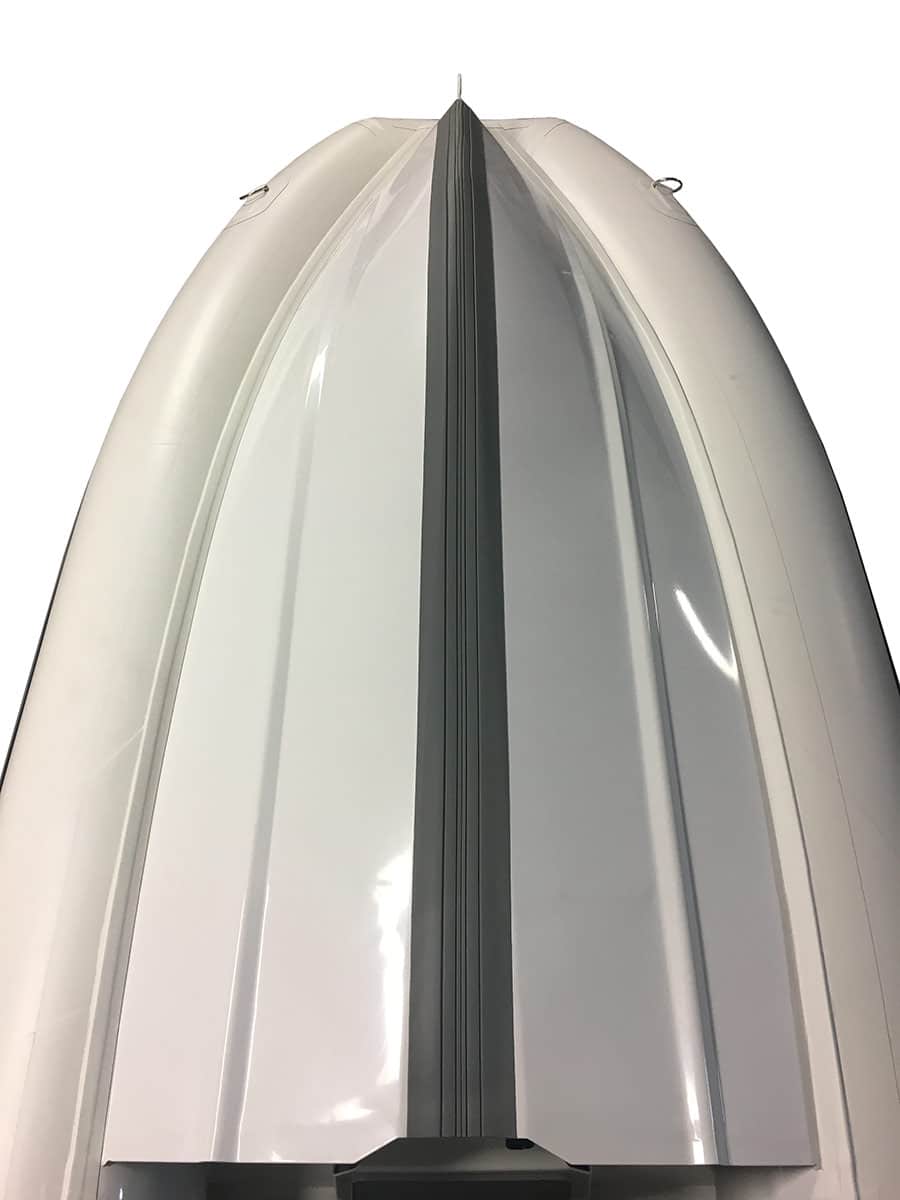

- New Heavy Duty Keel Protector
- More Internal Area
- Bow U bolt and lateral towing eyes
- "V" Hull
- ORCA (CSM) Coated Fabric
- Sunbrella Fabric Boat Cover Available

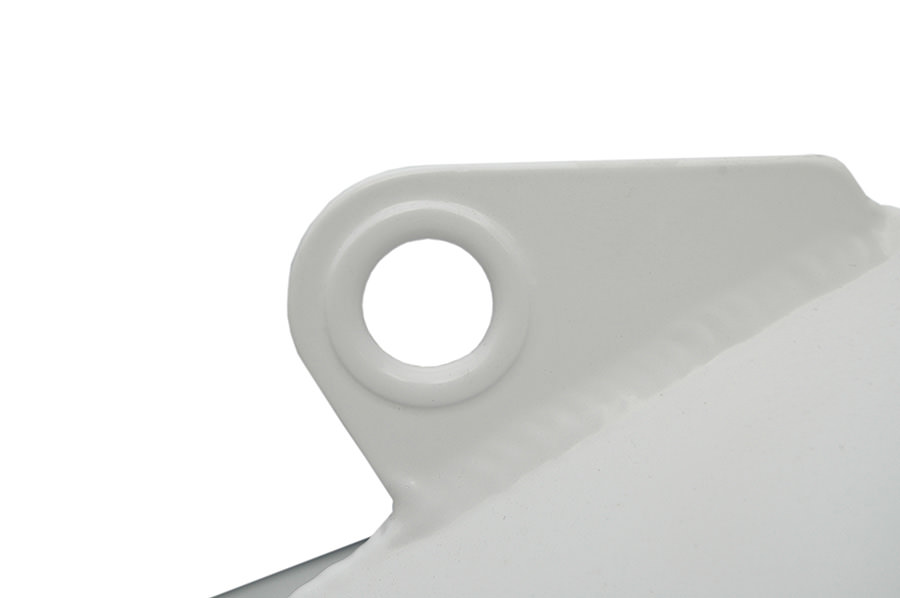

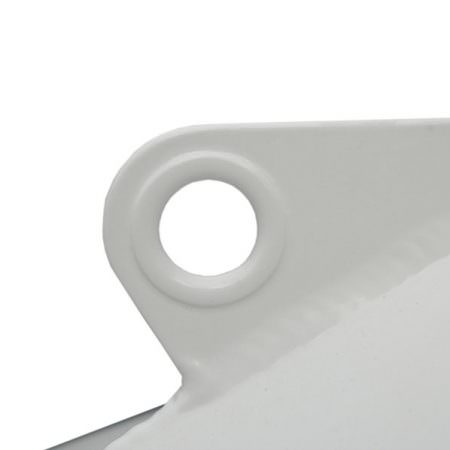

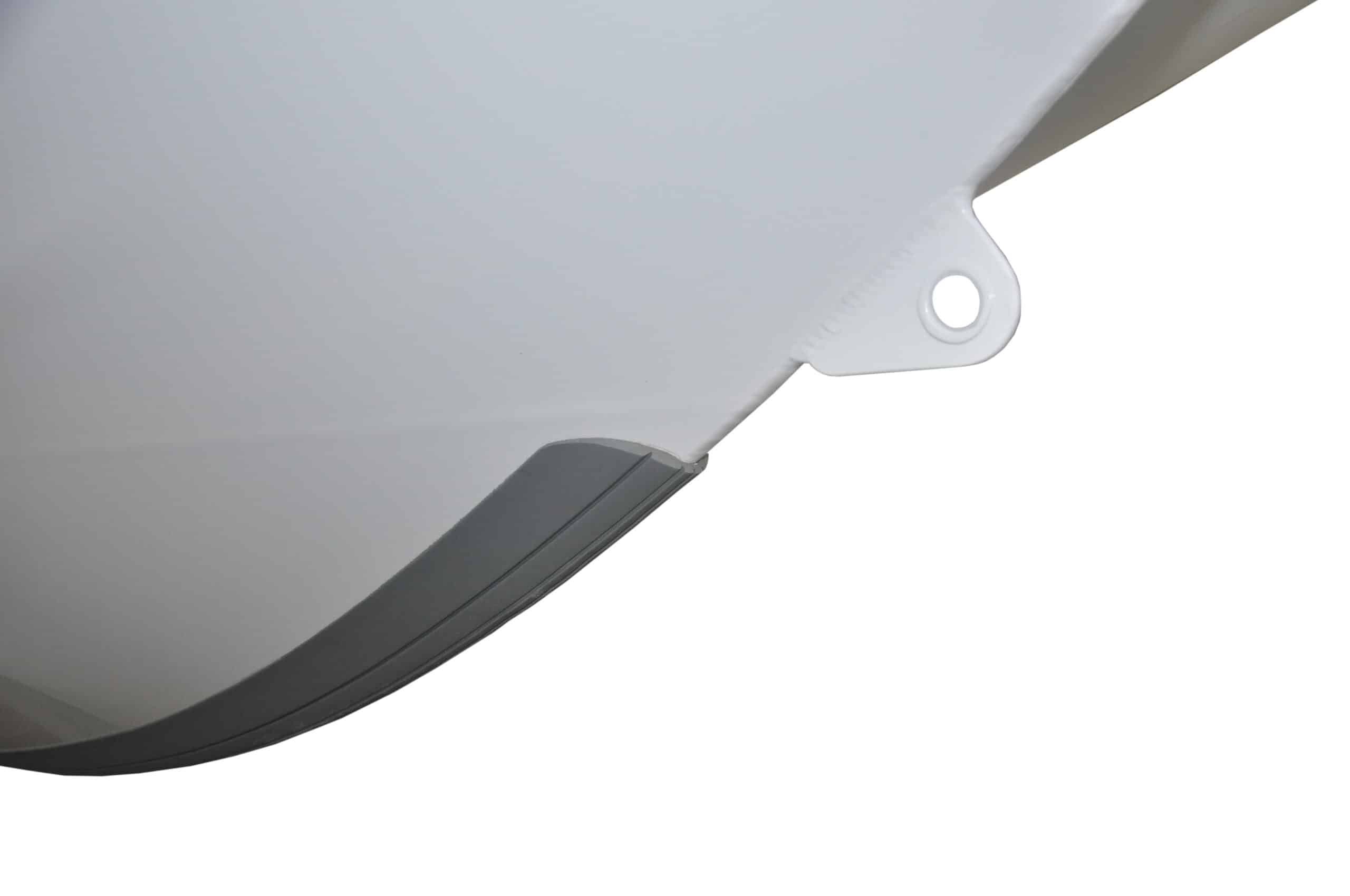

- Reinforced Alum. Lifting Eyes with SS Rings
- Reinforced (CSM) Fabric Handles
- Reinforced Alum. Transom Towing Eyes w/ SS Rings
- Reinforced Alum. Transom Tie Downs w/ SS Rings
- Custom Colors Upon Request
Specs
- Overall length9' 6" / 2,90m
- Overall Beam 5' 6" / 1,68m
- Inside Length 6' 11" / 2,11m
- Inside Beam 2' 6" / 0,76m
- Tube Diameter 17" / 0,43m
- Number of Chambers 3
- Person Capacity 5
- Weight 236 lbs / 107kg
- Recommended HP 15hp / 11,2kw
- Maximum HP 25hp / 18,7kw
- Shaft length 20" / 50.8 cm
- RDC Design Category C
- Aluminum Hull Thickness 0.125 in / 3.18 mm
- Aluminum Transom Thickness 0.190 in / 4.78mm
Standard Equipment
- Deep “V” Marine GRADE Aluminum Hull
- Stringer System Welded under Aluminum Deck

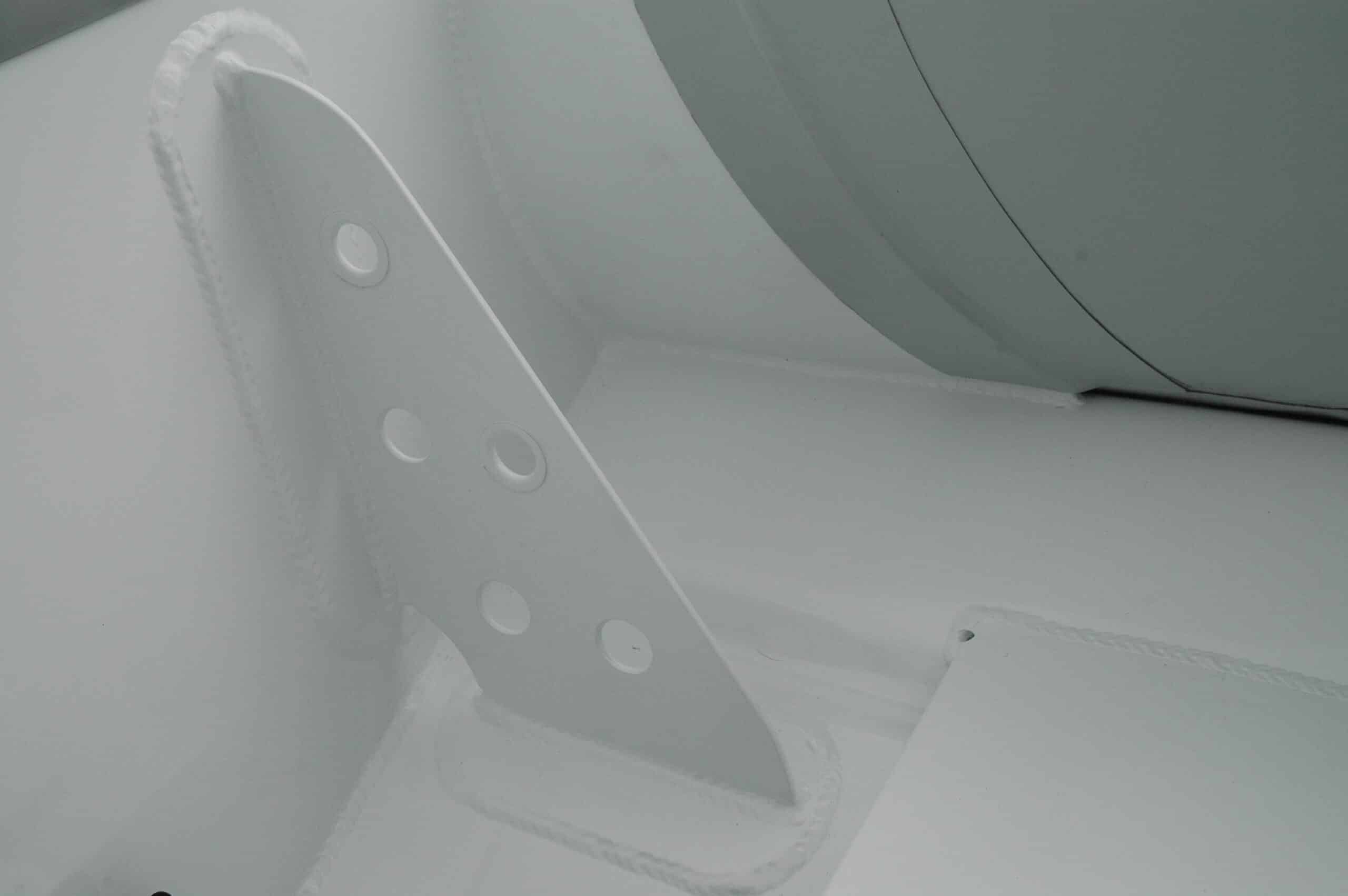

- Heavy Duty Transom Knees
- Non-Skid Rubber Floor Panels

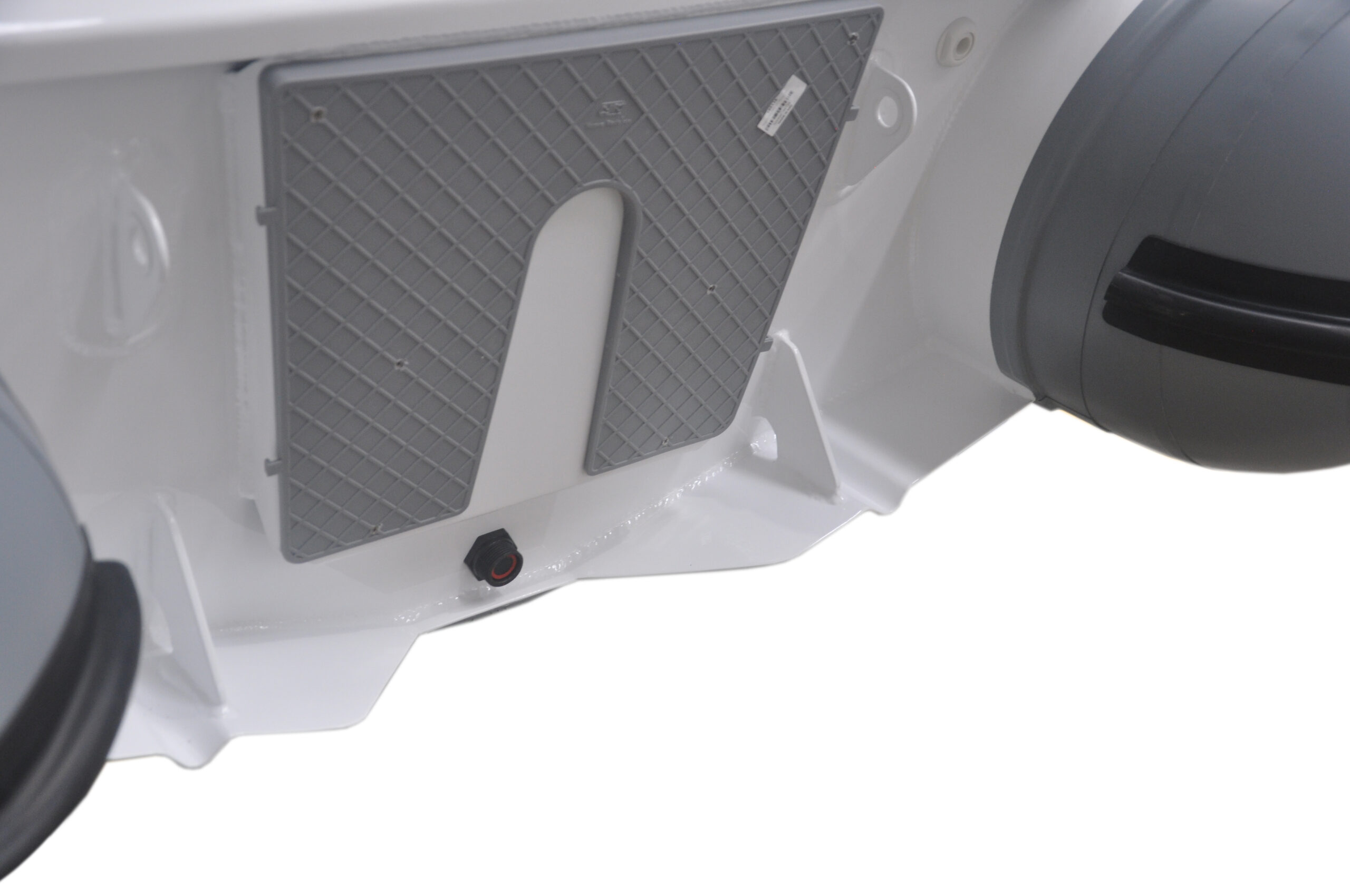

- Plastic External Transom Plate
- Aluminum Internal Transom Plate
- Aluminum Bow Eye
- 4 Aluminum Davit Lifting Points
- Aluminum Transom Tie Down & Towing Rings
- Aluminum Bow Tie Down & Towing Rings
- Deck Drain with Plug
- Orca (CSM) Five Layer Coated Fabric
- Raised Single Rub Rail
- Push Push Plastic Non-Corrosive 2 Stage Inflation Valves
- 1 Front & 2 Side Orca (CSM) Fabric Handles on Tubes
- 2 Inside Bow Sets of Double Orca (CSM) Fabric Handles on Tubes
- 2 Inside Stern Single Orca (CSM) Fabric Handles on Tubes
- Hand Pump
- Maintenance Kit
- Owner's Manual
- Closed Cell Foam Upholstery

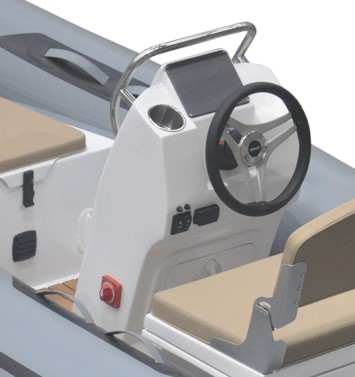

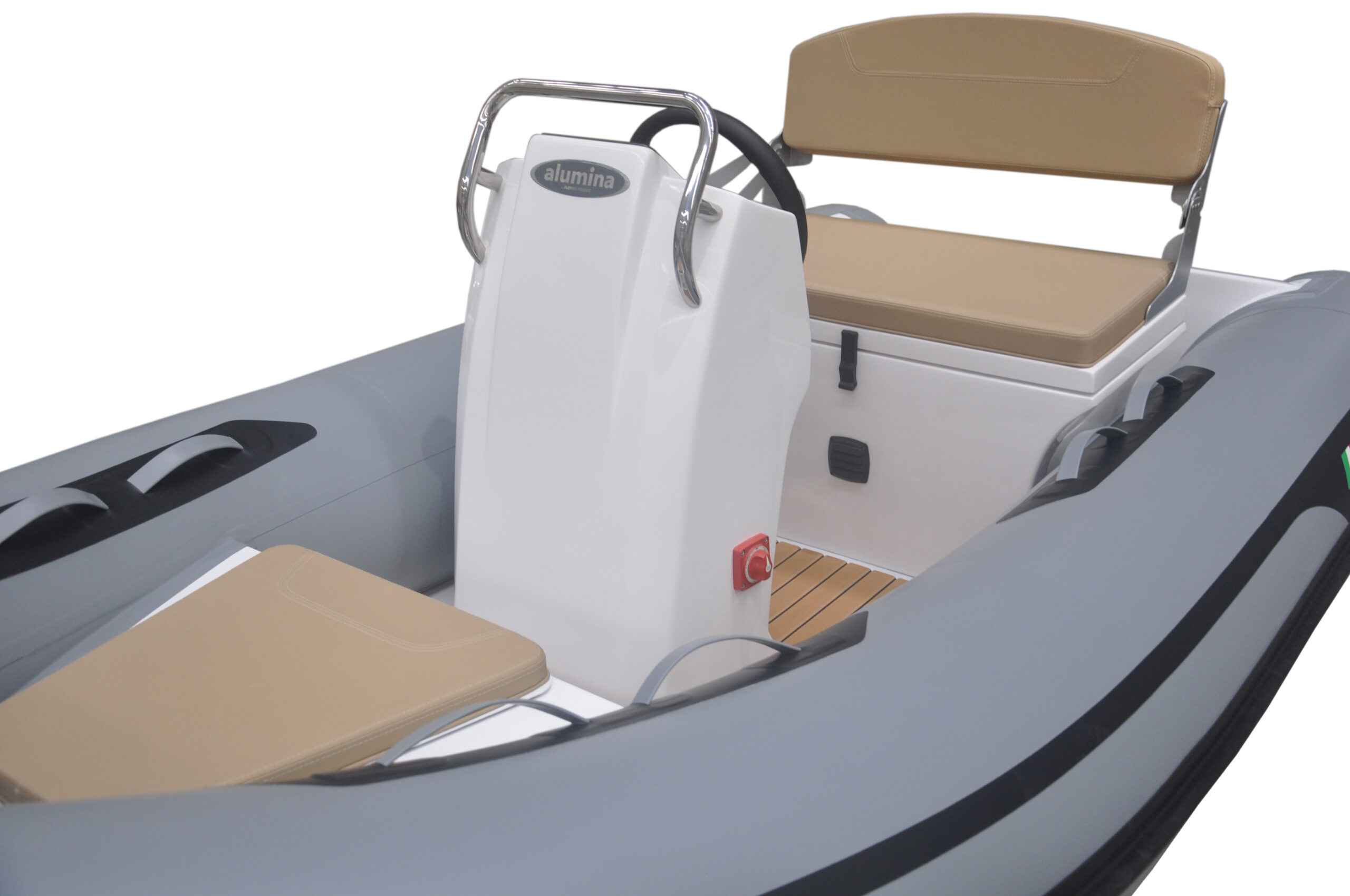

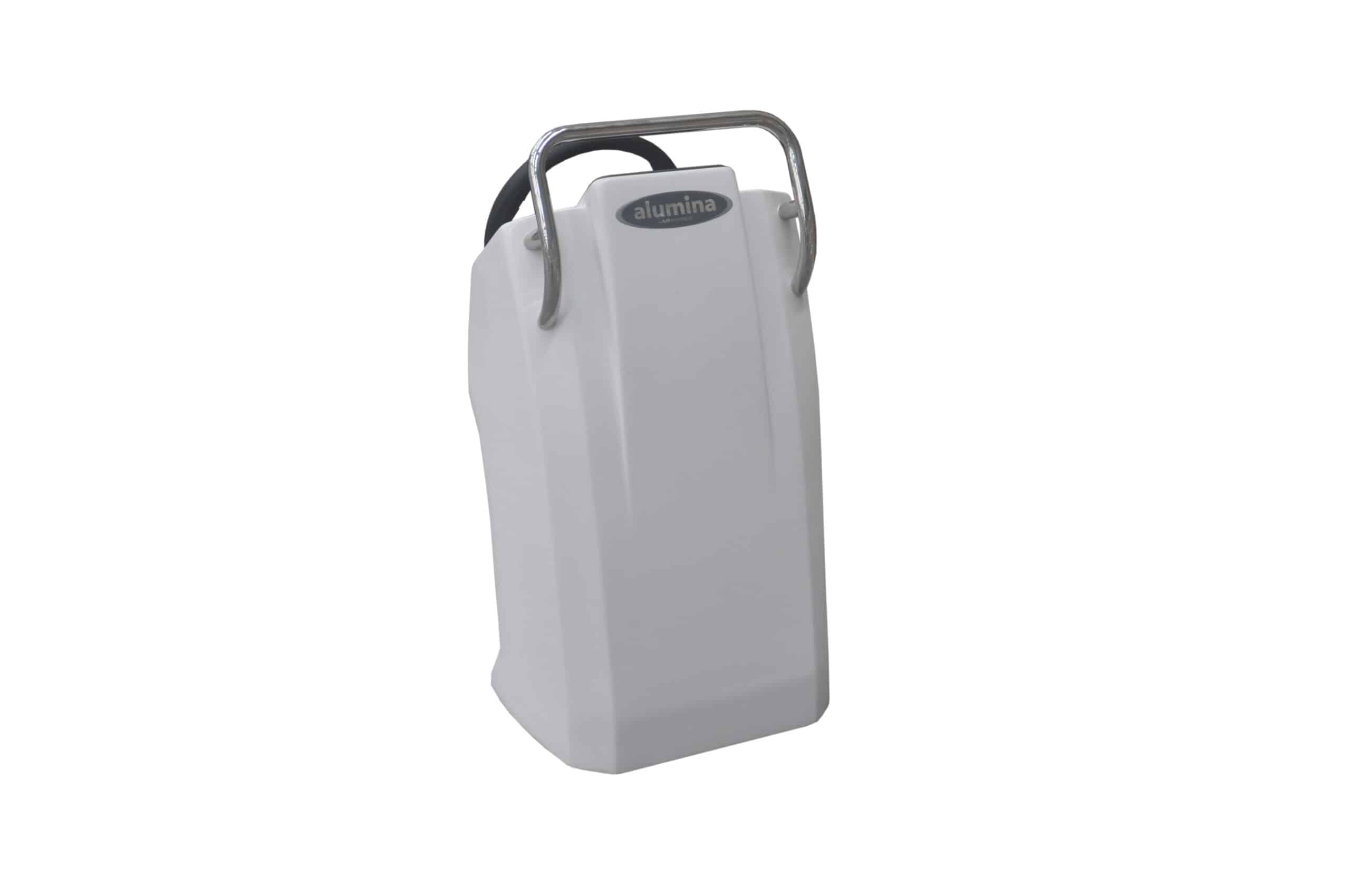

- Fiberglass Console Small
- Bench Seat with Storage
- Bow Locker/Seat with Vent & Storage to Fit a 6 Gal Portable Fuel Tank
- Bow Hatch Cushion
- Console Access Lid
- 360° White Anchor Light Pole
- Stainless Steel Console Grab Rail
- Battery Box
- Battery Switch
- Fuel and Water Separator Filter
- Mechanical Steering System
- Stainless Steel Steering Wheel
- Complete Tin Wiring & Heat Shrink Sealed Terminals
- 3 Layers Reinforced Seams
- Rubber Protector on Full Length of Keel
Optional Equipment
- Portable 3 gal Fuel Tank Installed in Bow Locker with Fittings
- Boat Cover
- Chock Set
- Bimini Top with Stainless Steel Tubing
- Console Cover
- Lifting Harness
- CD/Radio System
- Compass
- GPS
- VHF Package
