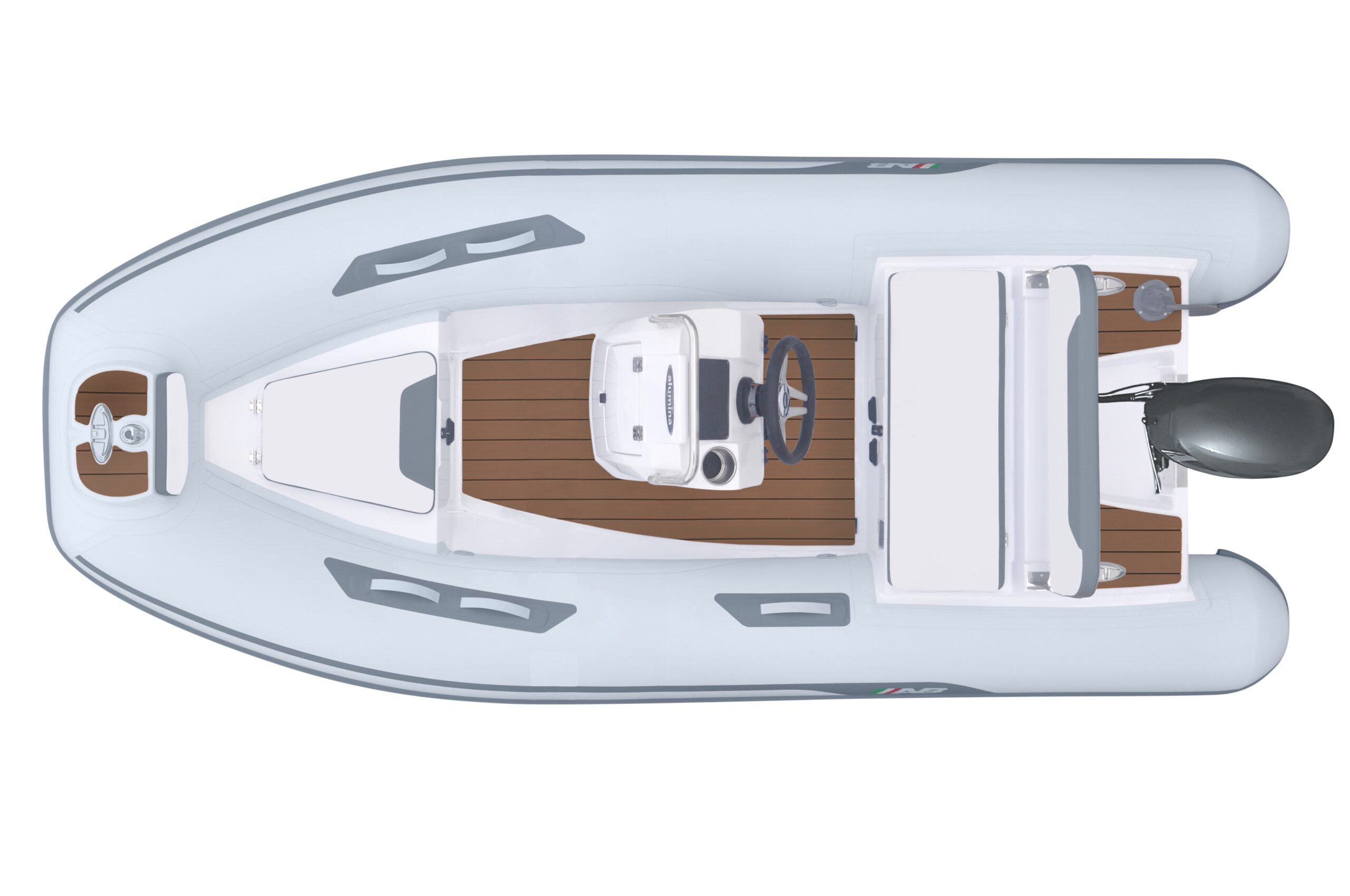

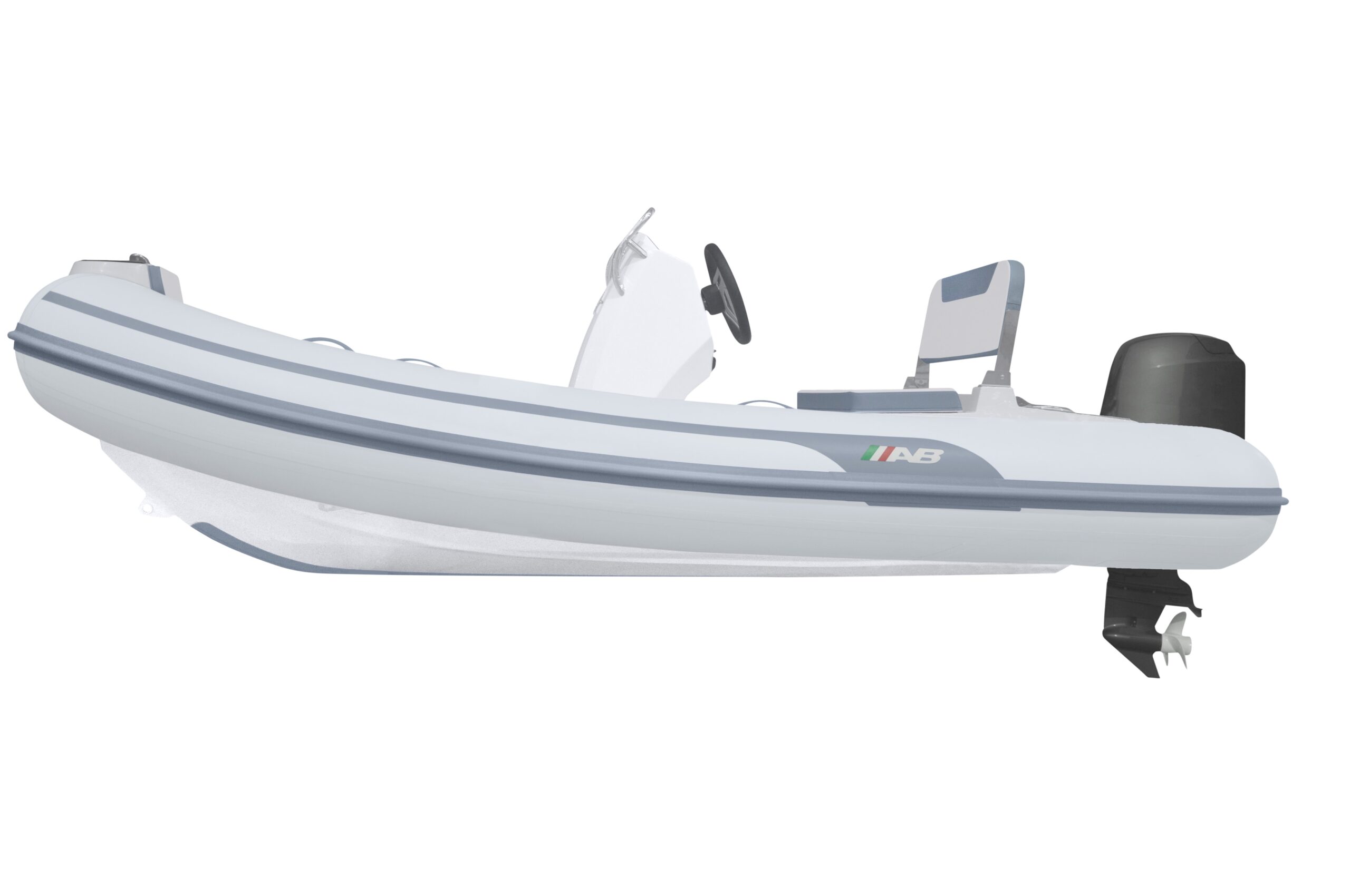

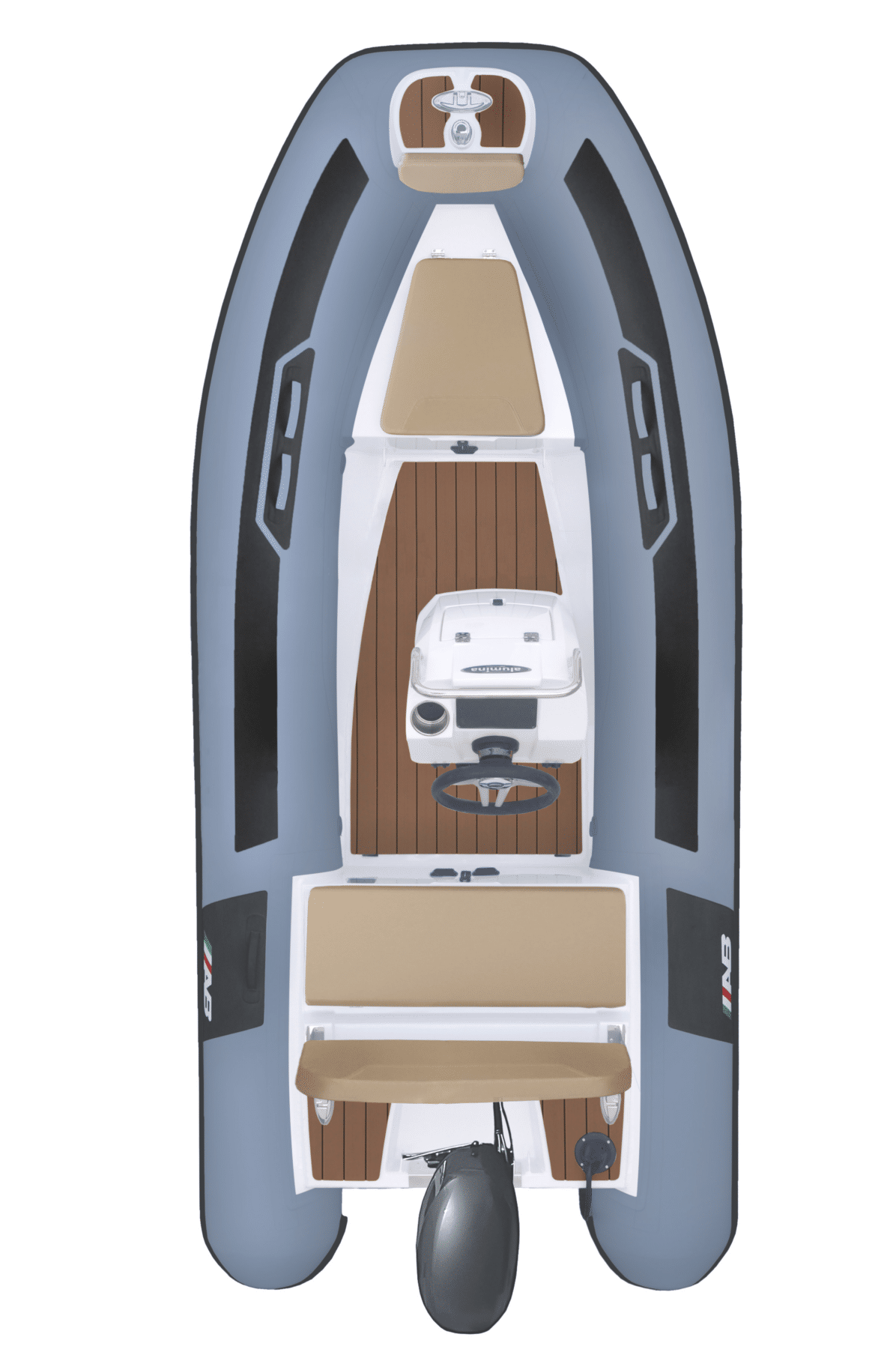

Alumina

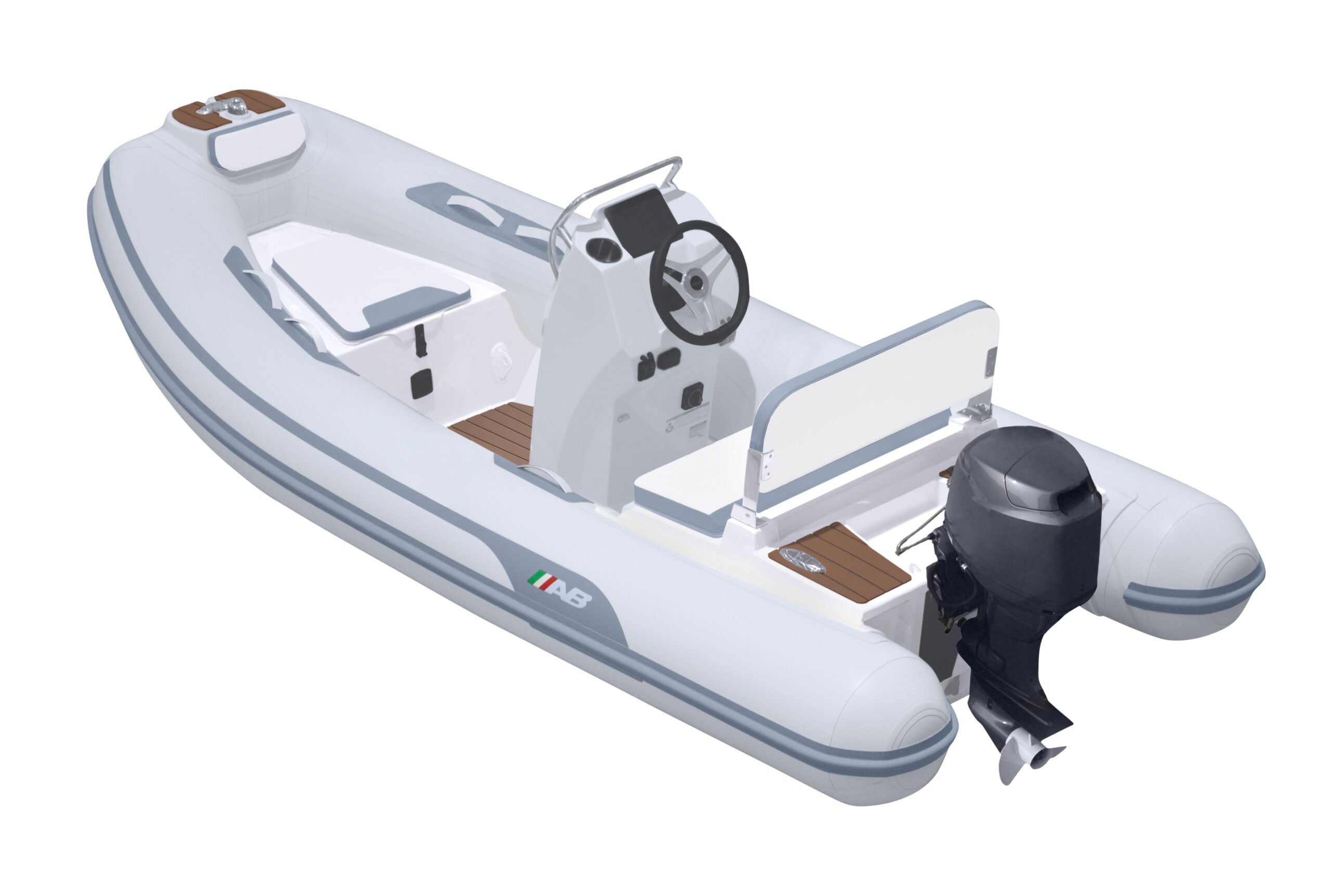

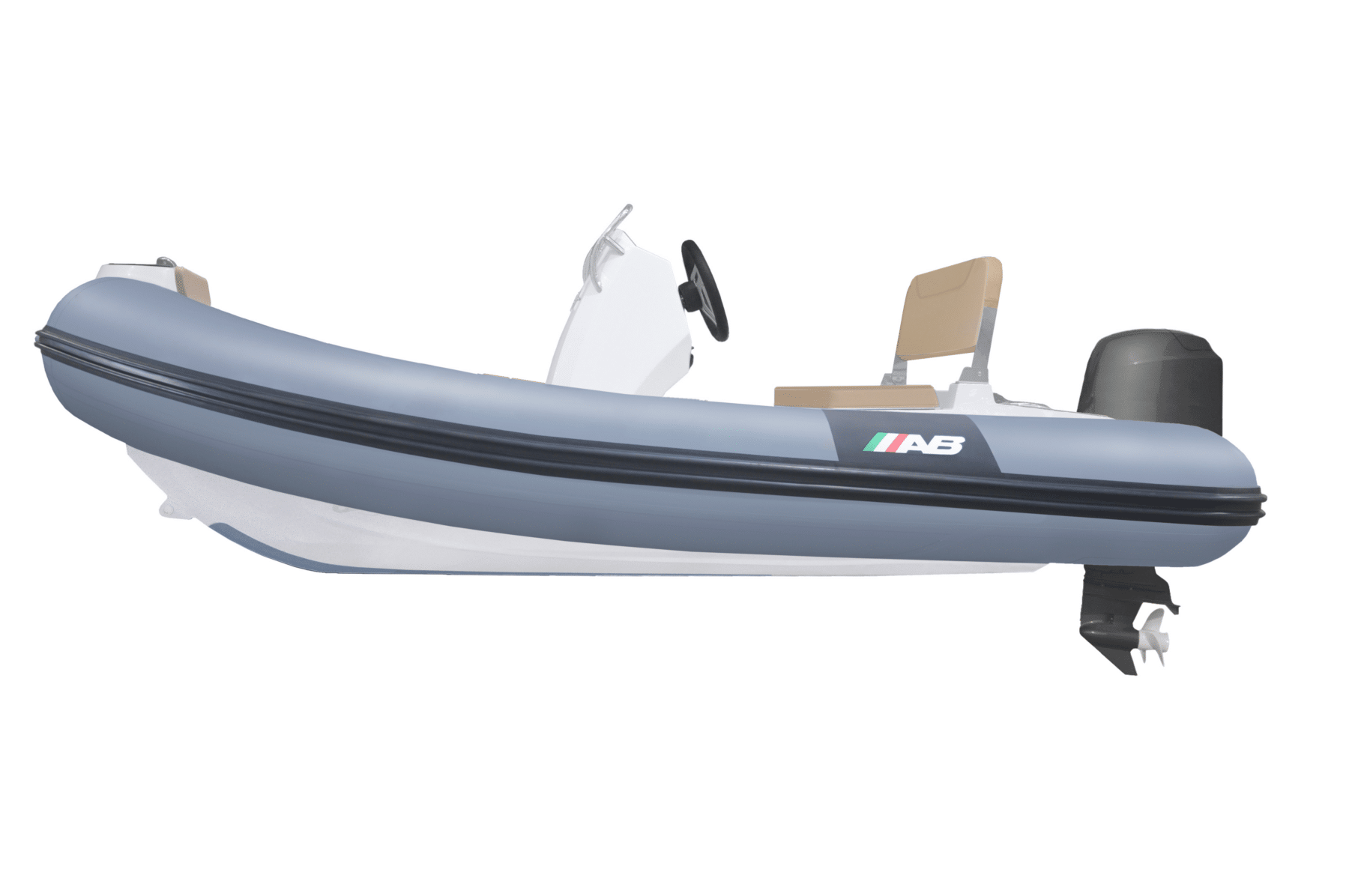

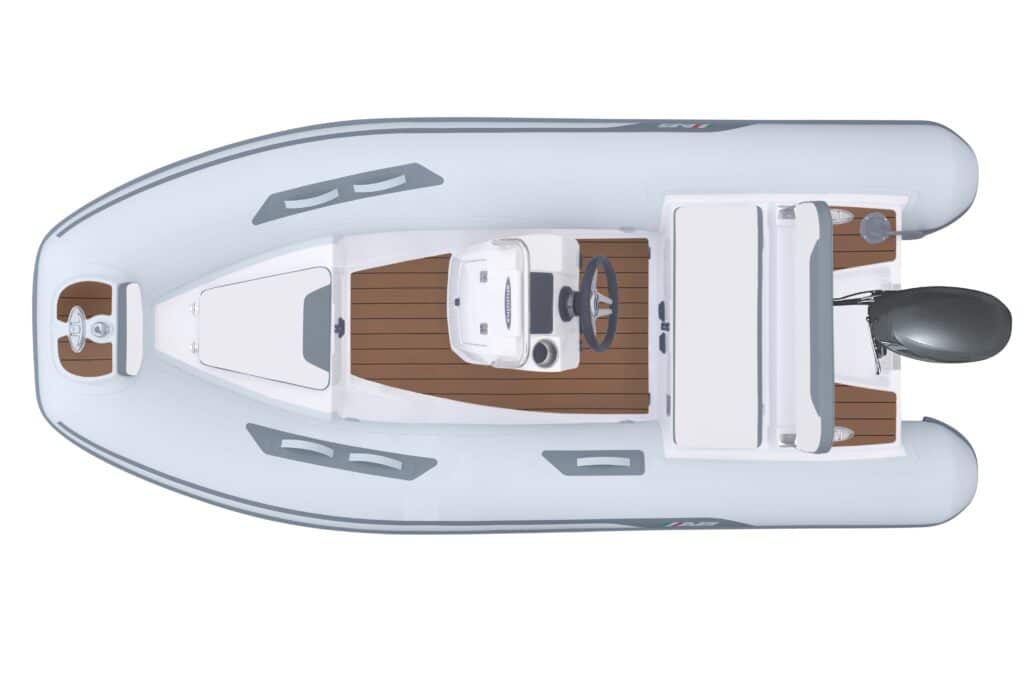

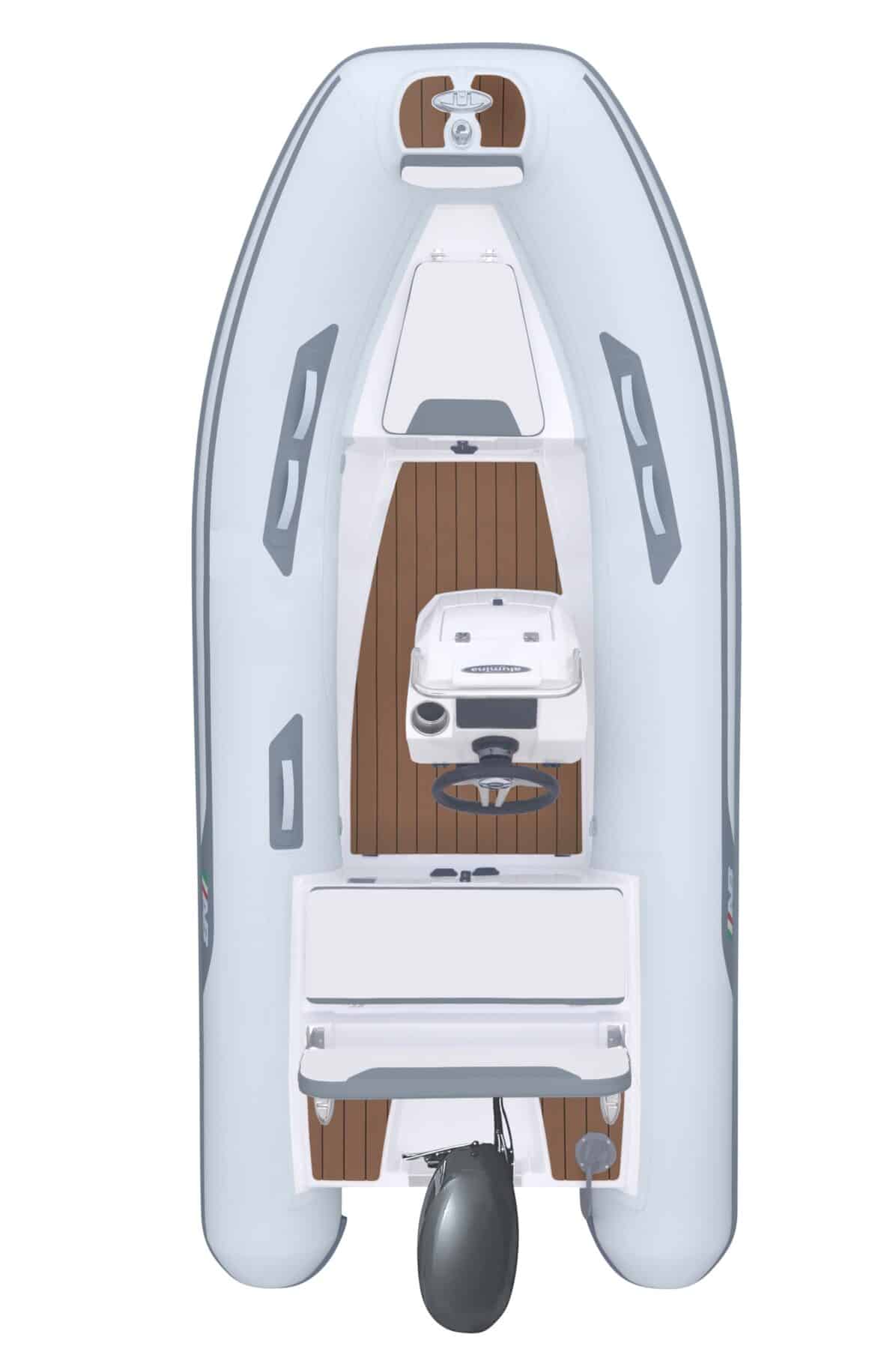

12 ALX
ALUMINUM CONSOLE TENDERS
Versatile, durable, and designed for the adventurous.
Learn more
Key Features
- Bow Step with Cushion, Fold Down Stainless-Steel Cleat & LED Navigation lights
- SEADEK® FOAM TEAK

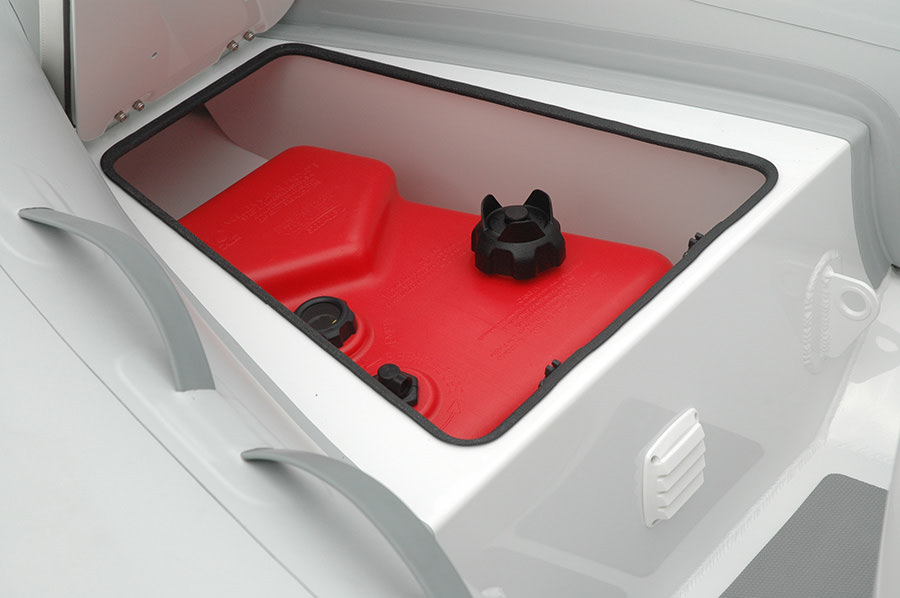

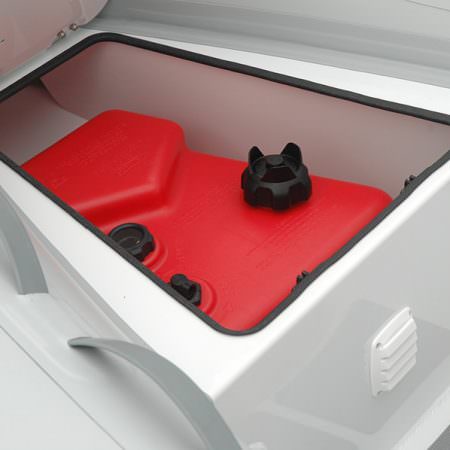

- Portable 6 gal Fuel Tank Installed in Bow Locker with Fittings
- Mechanical Steering System - Installed from factory
- SS Wheel - Installed from factory
- LED Navigation - Installed from factory
- All Around Anchor Lights - Installed from factory
- Battery Master Switch - Installed from factory
- Bilge Pump - Installed from factory
- Fuel/Water Separator & Canister - Installed from factory
- SS Gas Springs on rearseat
- Ventilation on Bow Locker
- Large Square Transom Alum. Reinforced Base
- New Chrome Free - Advanced Pretreatment and Powder Coating Technology
- Ultra High Quality Welding
- Single Solid Rubrail
- New Heavy Duty Keel Protector
- More Internal Area
- Bow U bolt and lateral towing eyes
- "V" Hull
- ORCA (CSM) Coated Fabric
- Sunbrella Fabric Boat Cover Available

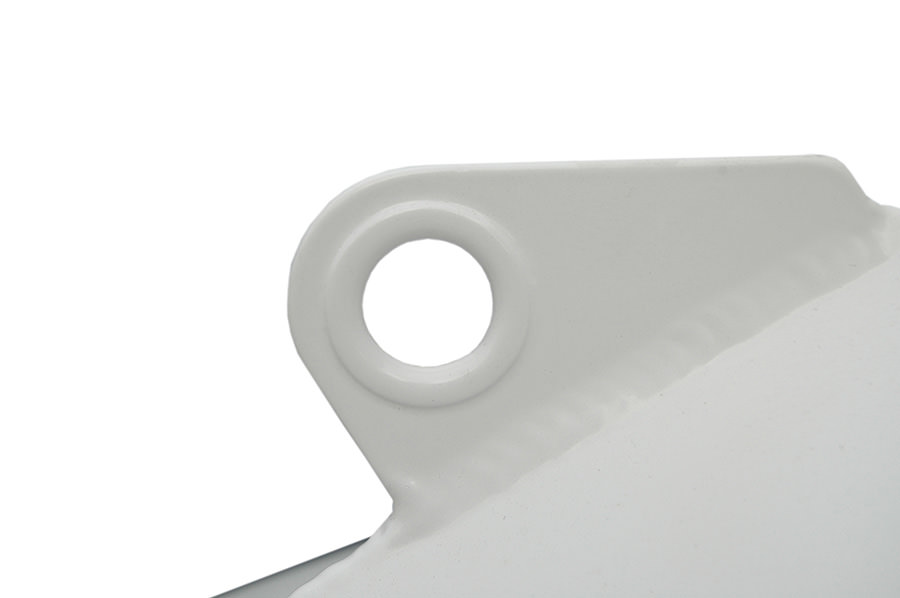

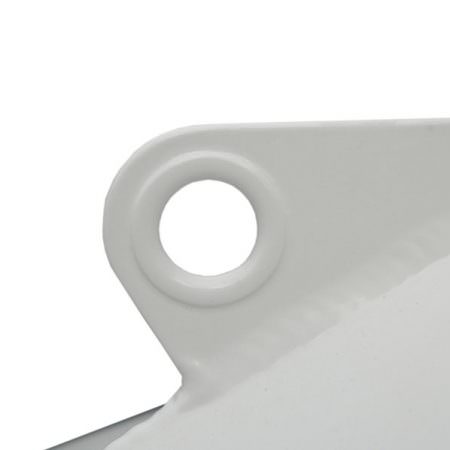

- Reinforced Alum. Lifting Eyes with SS Rings
- Reinforced (CSM) Fabric Handles
- Reinforced Alum. Transom Towing Eyes w/ SS Rings
- Reinforced Alum. Transom Tie Downs w/ SS Rings
- Custom Colors Upon Request
Specs
- Overall length12' / 3,66m
- Overall Beam 6' 1" / 1,85m
- Inside Length 8' 10" / 2,70m
- Inside Beam 2' 11" / 0,89m
- Tube Diameter 18" / 0,46m
- Number of Chambers 3
- Person Capacity 6
- Weight 315lbs / 143kg
- Recommended HP 25hp / 18,7kw
- Maximum HP 40hp /29,8kw
- Shaft length 20" / 50,8cm
- RDC Design Category C
- Aluminum Hull Thickness 0.125 in / 3.18 mm
- Aluminum Transom Thickness 0.190 in / 4.78mm
Standard Equipment
- Deep “V” Marine GRADE Aluminum Hull
- Stringer System Welded under Aluminum Deck
- Heavy Duty Transom Knees
- Non-Skid Rubber Floor Panels
- Plastic External Transom Plate
- Aluminum Internal Transom Plate
- Aluminum Bow Eye
- 4 Aluminum Davit Lifting Points
- Aluminum Transom Tie Down & Towing Rings
- Aluminum Bow Tie Down & Towing Rings
- Deck Drain with Plug
- Orca (CSM) Five Layer Coated Fabric
- Single Solid Rubrail
- Push Push Plastic Non-Corrosive 2 Stage Inflation Valves
- 2 Inside Bow Sets of Double Orca (CSM) Fabric Handles on Tubes
- 2 Inside Stern Single Orca (CSM) Fabric Handles on Tubes
- Hand Pump
- Maintenance Kit
- Owner's Manual
- Closed Cell Foam Upholstery
- Fiberglass Console
- Bench Seat with Storage
- Bow Locker/Seat with Vent & Storage to Fit a 6 Gal Portable Fuel Tank
- Portable 6 gal Fuel Tank Installed in Bow Locker with Fittings
- Bow Hatch Cushion
- Console Access Lid
- Bow Step with Fold Down Stainless Steel Cleat & Running Lights
- 360° White Anchor Light Pole
- Lateral Fold Down Stainless Steel Cleat
- Stainless Steel Console Grab Rail
- Plexiglass Windshield
- Deluxe Carbon Fiber Style Pannel
- 4 Waterproof Rocker Switches with Circuit Brakers
- Battery Box
- Battery Switch
- Fuel and Water Separator Filter
- Mechanical Steering System
- Stainless Steel Steering Wheel
- Complete Tin Wiring & Heat Shrink Sealed Terminals
- 3 Layers Reinforced Seams
- Rubber Protector on Full Length of Keel
Optional Equipment
- Tube Chaps
- Boat Cover
- Chock Set
- Bimini Top with Stainless Steel Tubing
- Console Cover
- Lifting Harness
- CD/Radio System
- Compass
- GPS
- VHF Package
