Profile AS

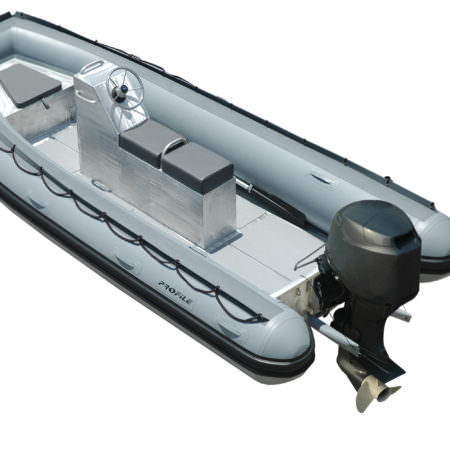

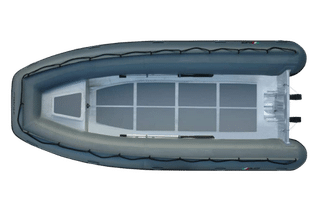

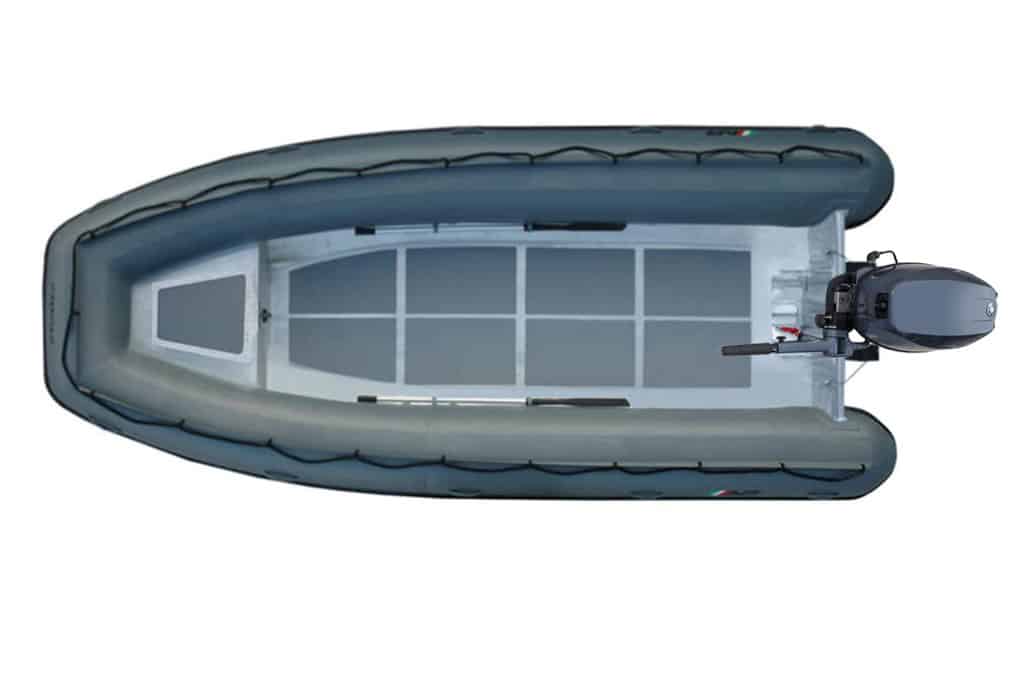

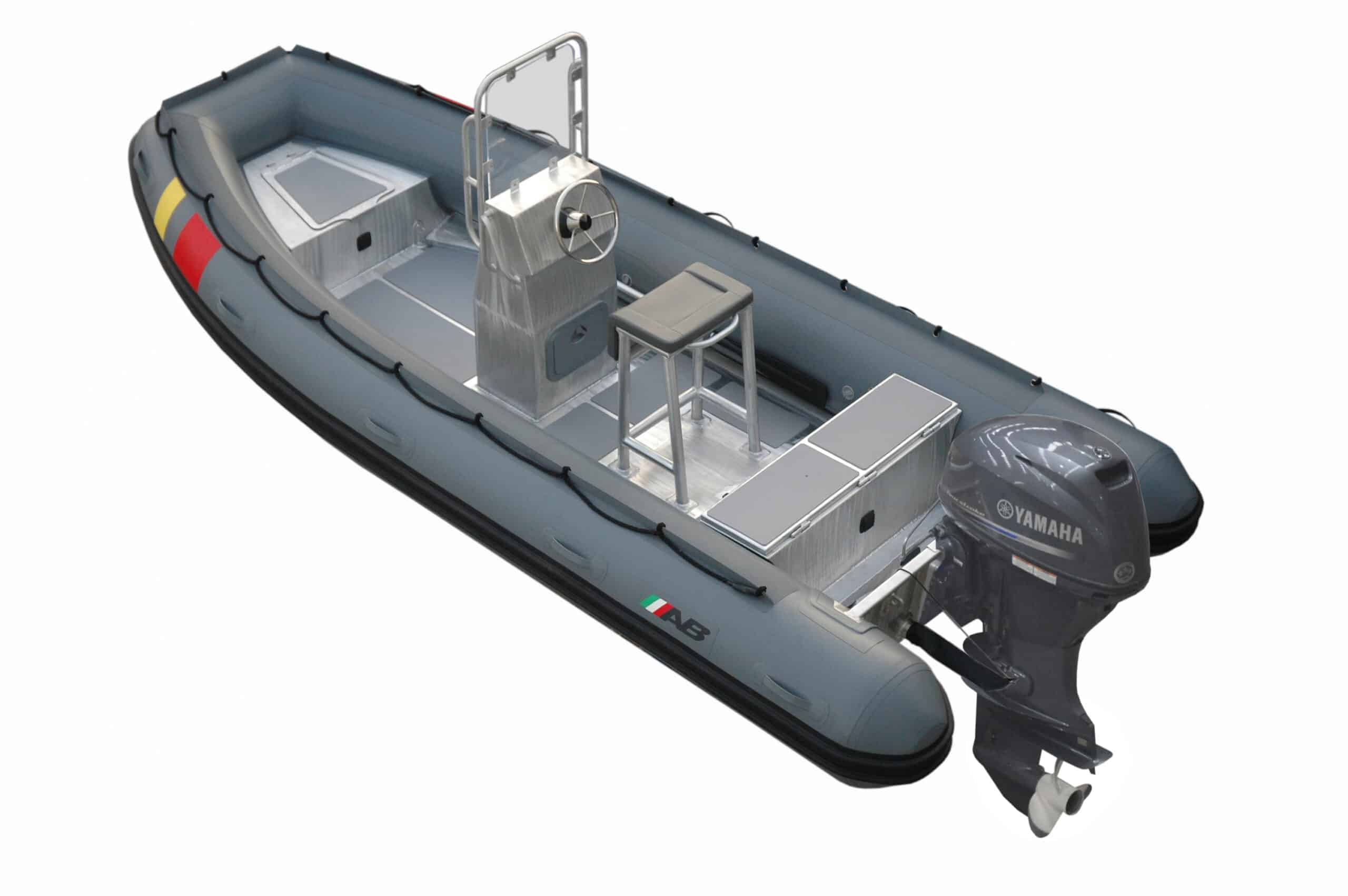

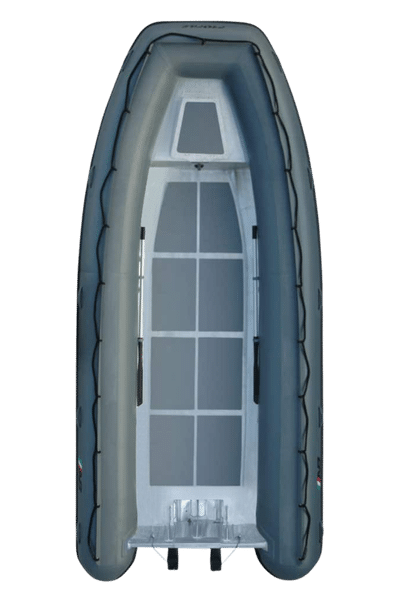

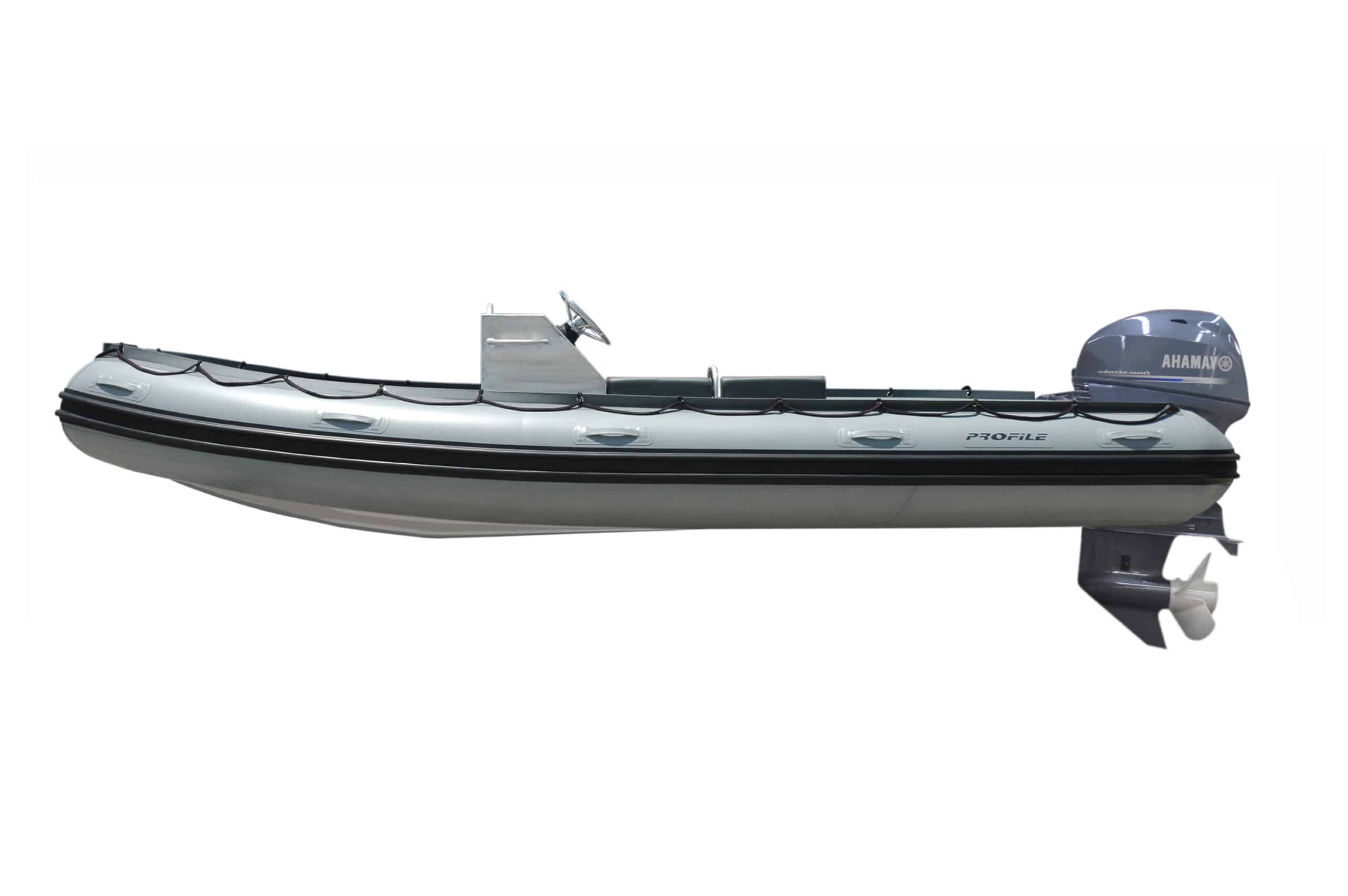

A16-S
PROFESSIONAL SHALLOW WATER ALUMINUM BOATS
Built for professionals in severe, real-world conditions.
Learn more
Key Features
- Ventilation on Bow Locker
- Large Square Transom Alum. Reinforced Base
- Non-skid (CSM) Fabric on Tube
- More Payload Capacity
- More Internal Area
- Optional B.Locker - 6 Gal portable F. tank
- Pressure Relief Valves
- Ultra High Quality Welding
- Bow U bolt and lateral towing eyes
- Double Solid Rubrail
- New Heavy Duty Keel Protector
- Shallow Water Version Hull
- 1670 D-Tex ORCA (CSM) Coated Fabric
- Sunbrella Fabric Boat Cover Available
- Reinforced Alum. Lifting Eyes with SS Rings
- Internal Aluminum Plate with Security Lip
- Reinforced (CSM) Fabric Handles

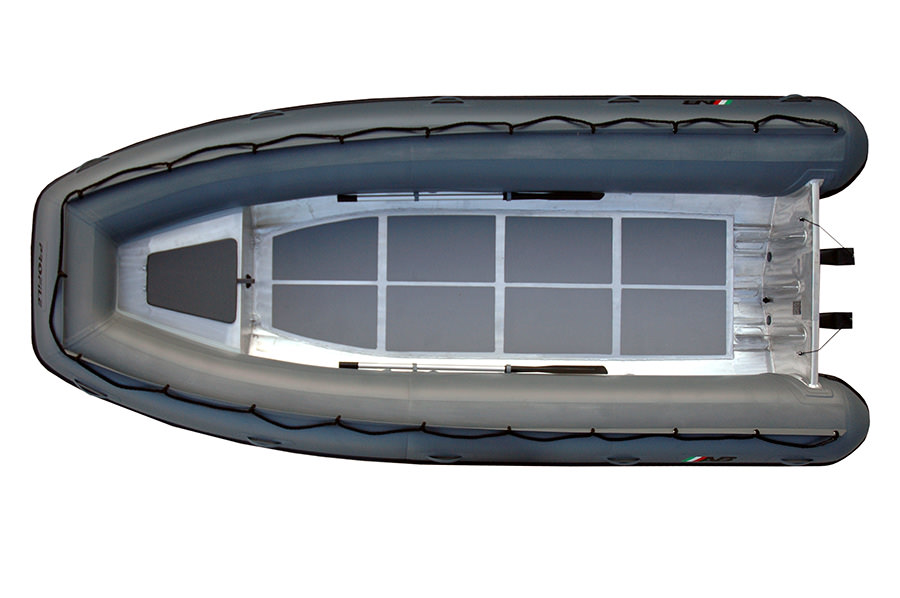

- Non-skid Rubber Floor
- Reinforced Alum. Transom Towing Eyes w/ SS Rings
- Reinforced Alum. Transom Tie Downs w/ SS Rings
- Custom Colors Upon Request
Specs
- Overall length16’ / 4,88m
- Overall Beam 7’ / 2,14m
- Inside Length 13’2’’ / 4,01m
- Inside Beam 3’6’’ / 1,08m
- Tube Diameter 21’’ / 0,53m
- Person Capacity 10
- Weight 480 lbs / 218 kg **
- Weight with Bow Locker 500 lbs / 227 kg
- Recommended HP 50hp / 37.3kw
- Maximum HP 60hp / 44.8kw
- Shaft length 20’’ / 50,8cm
- RDC Design Category C
- Deadrise 6°
- Aluminum Hull Thickness 0.190 in / 4.78 mm
- AluminumTransomThickness 0.190 in / 4.78 mm
(**) Weight spec applies for models without bow locker
Add 5 kg / 11 lbs for model 11
Add 7 kg / 15 lbs for models 12-16
Standard Equipment
- Marine Grade Aluminum Shallow "V" Hull
- 3 Heavy Duty Transom Knees
- Welded Aluminum Stringer System
- Non-Skid Rubber Floor Panels
- Plastic External Transom Plate
- Aluminum Internal Transom Plate
- Aluminum Bow Eye
- 3-4 Aluminum Davit Lifting Points
- Aluminum Transom Tie Down & Towing Rings
- Aluminum Bow Tie Down & Towing Rings
- Deck Drain with Plug
- Orca (CSM) 1670 Five Layer Coated Professional Use Fabric
- Raised Double Solid Rub Rail
- Push Plastic Non-Corrosive 2 Stage Inflation Valves
- Pressure Relief Valves
- 1 Front & 5 Side Orca (CSM) Heavy Duty Fabric Handles on Tubes
- Paddles with Aluminum Shaft
- Paddle Holders
- Hand Pump
- Maintenance Kit
- Owner´s Manual
- 4 Layers Reinforced Seams
- Rubber Protector on Full Length of Keel
- 3 Inch Drain Scuppers
- Non-Skid (CSM) Coated Fabric On Tube Surface
- Lifeline Around Tube
Optional Equipment

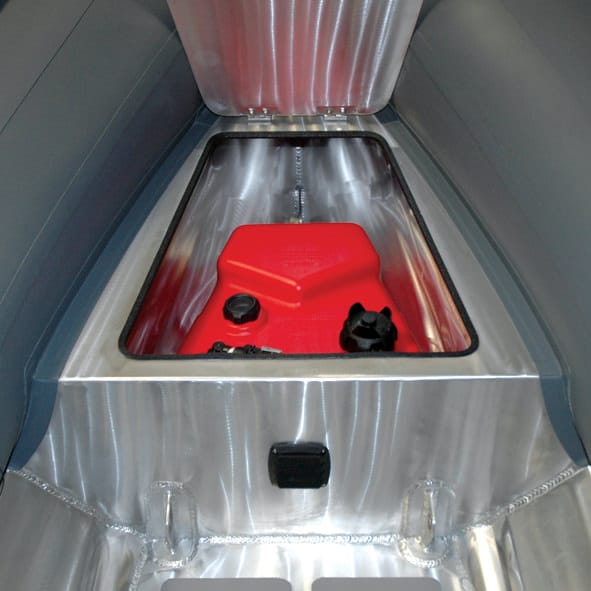

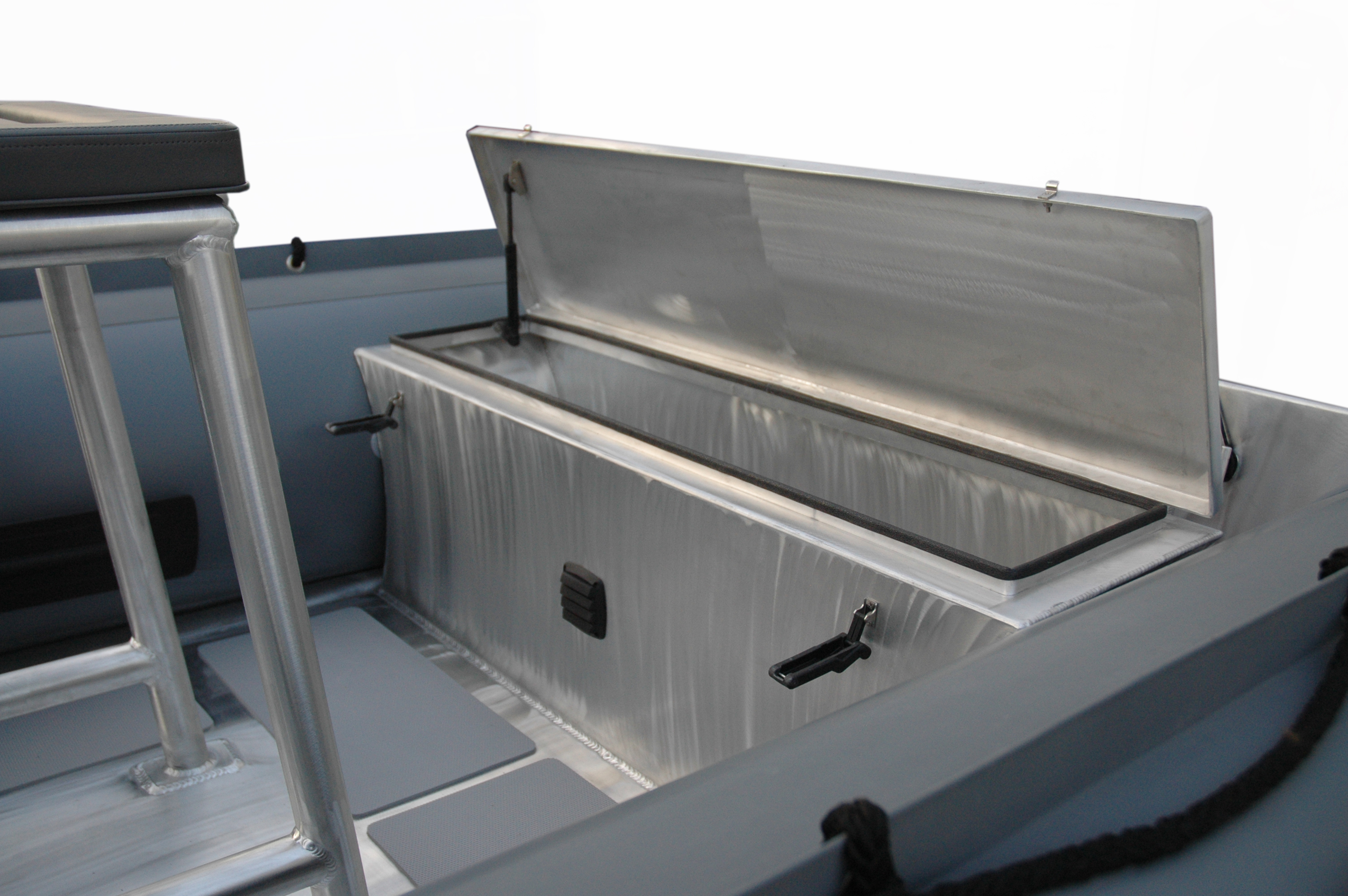

- Bow Locker/Seat with Vent & Storage to Fit a 6 Gal Portable Fuel Tank
- Portable 6 gal Fuel Tank Installed in Bow Locker with Fittings
- Boat Cover
- Bow Step with Fold Down Stainless Steel Cleat
- Lateral Fold Down Stainless Steel Cleat

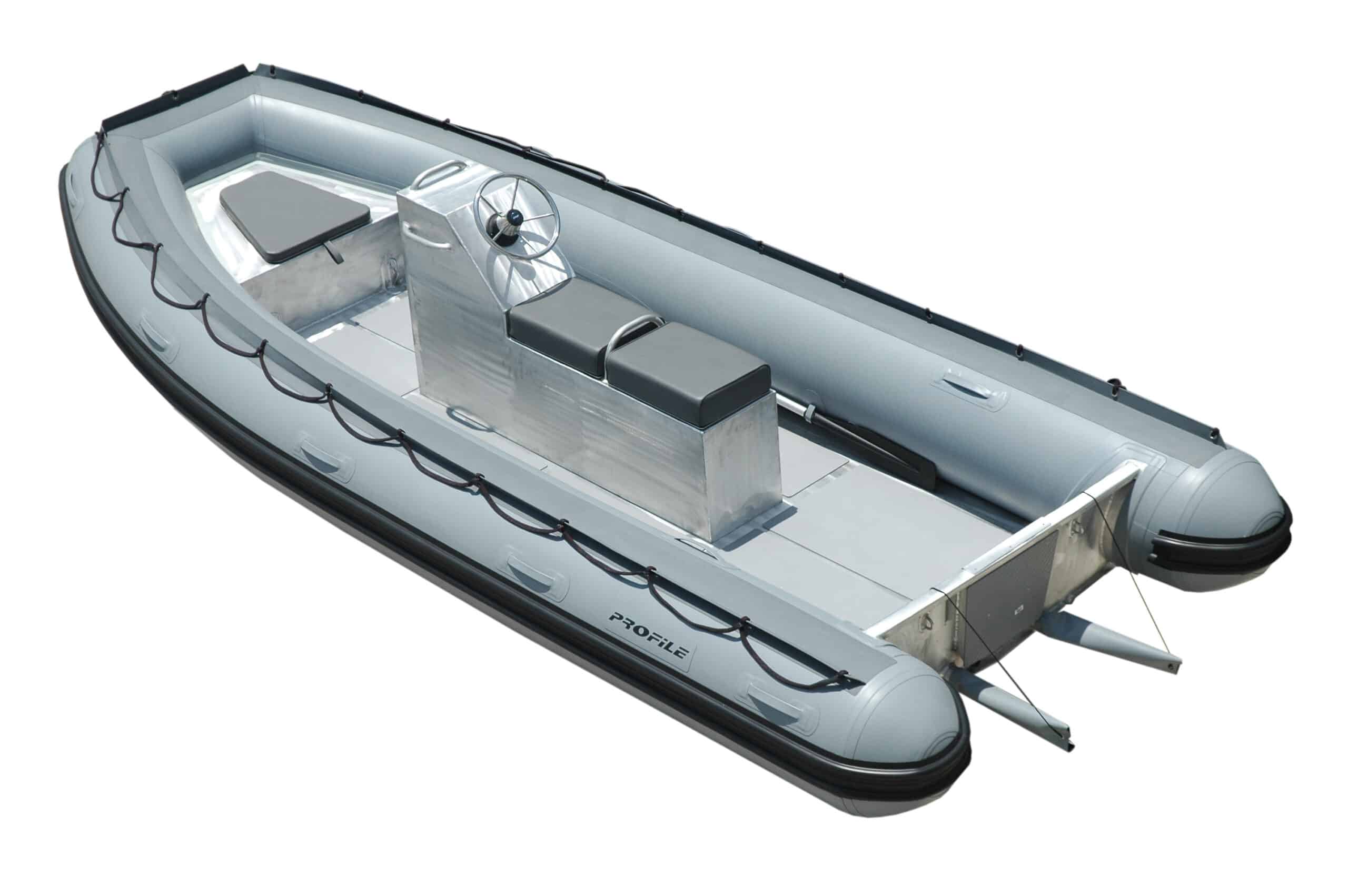

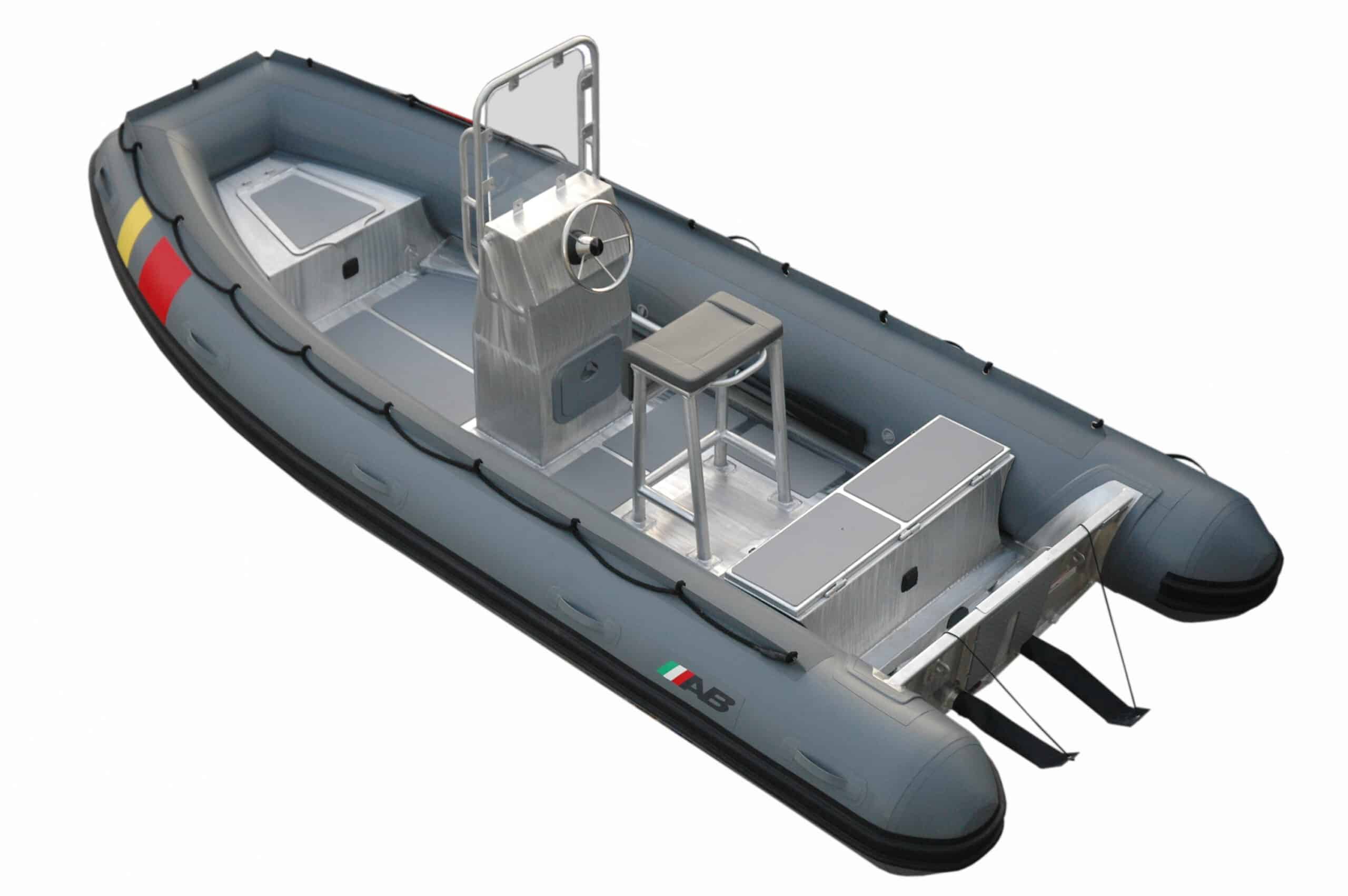

- Fiberglass Console
- Fiberglass Console with Forward Seat

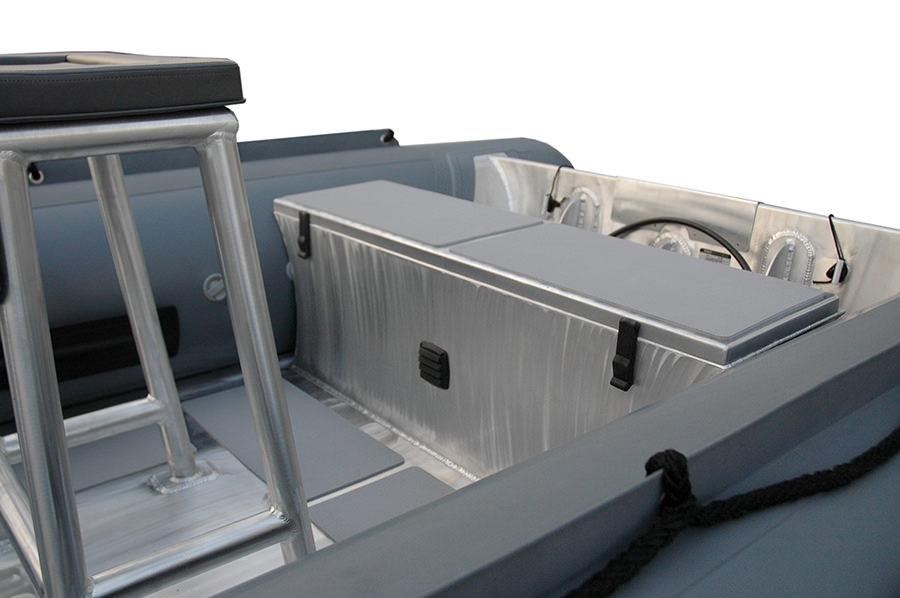

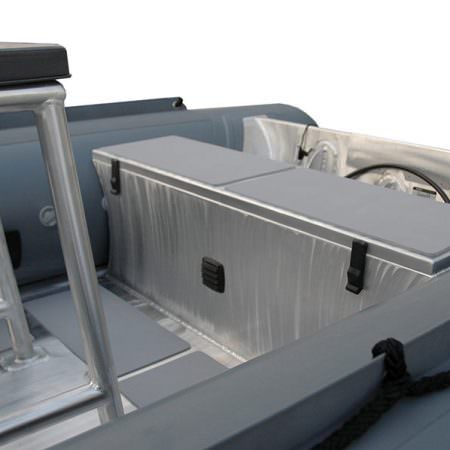

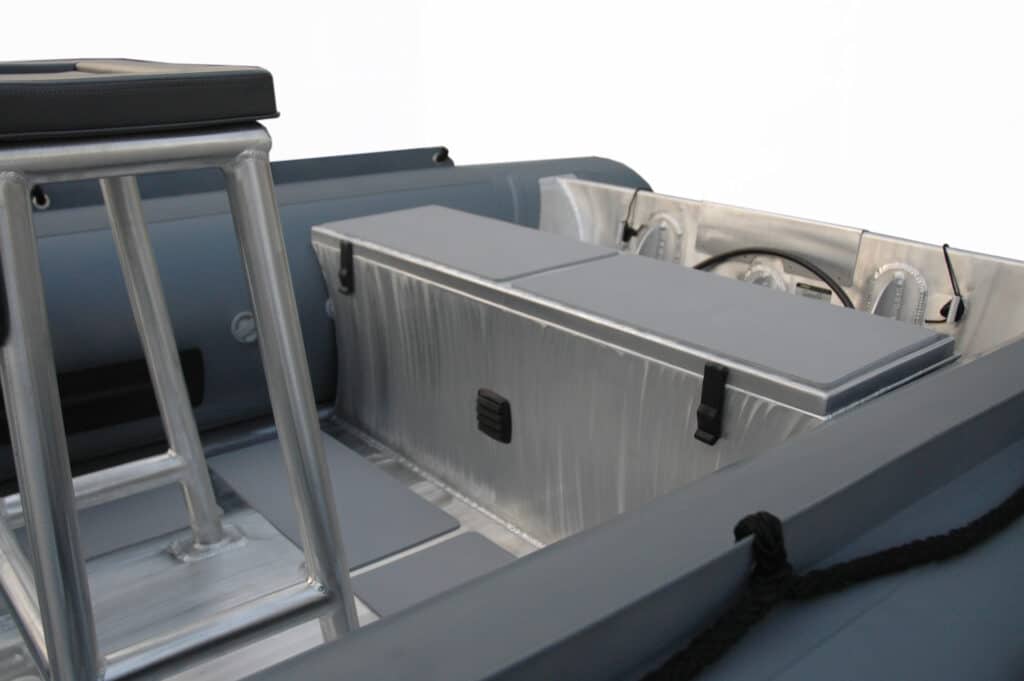

- Bench Seat with Storage
- One Person Jockey Console
- Two Person Jockey Console

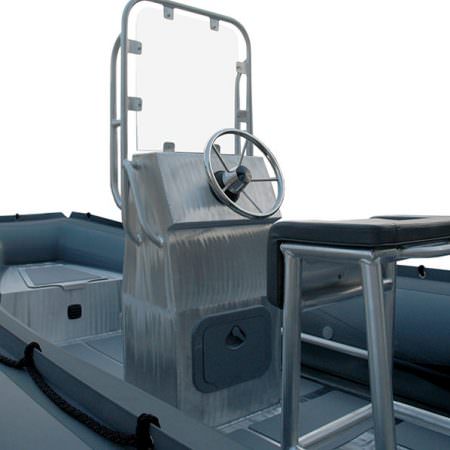

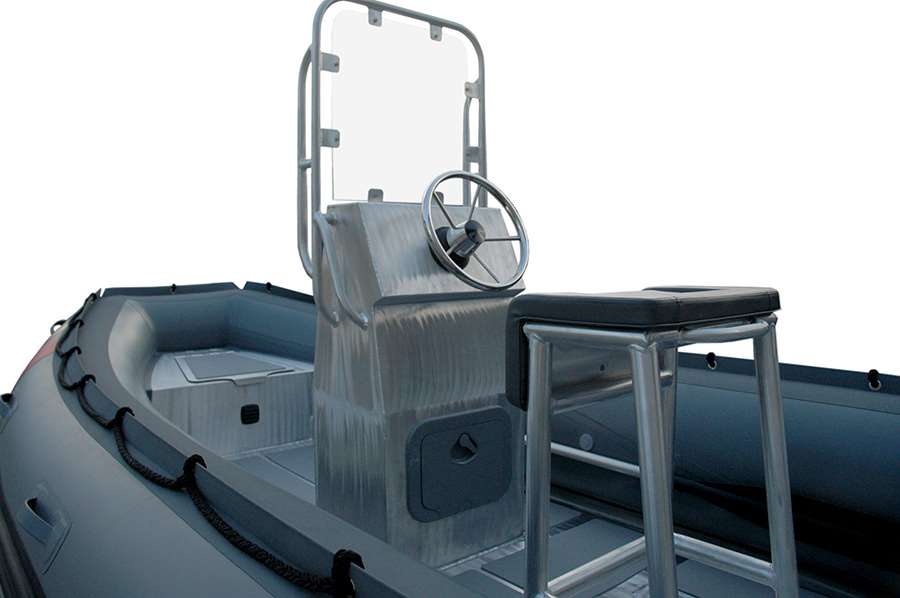

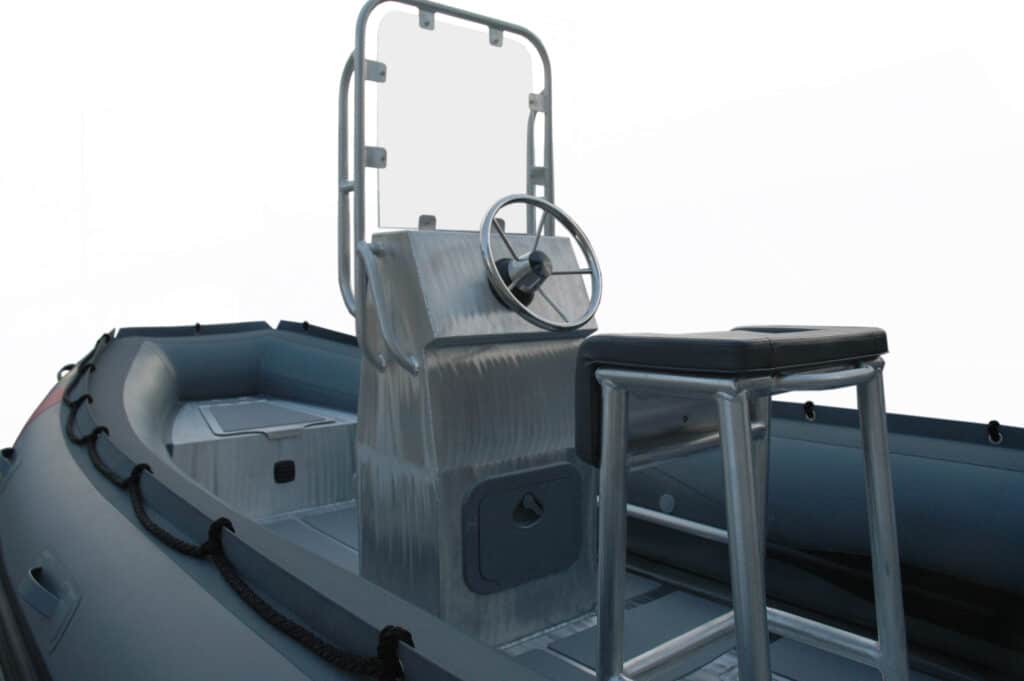

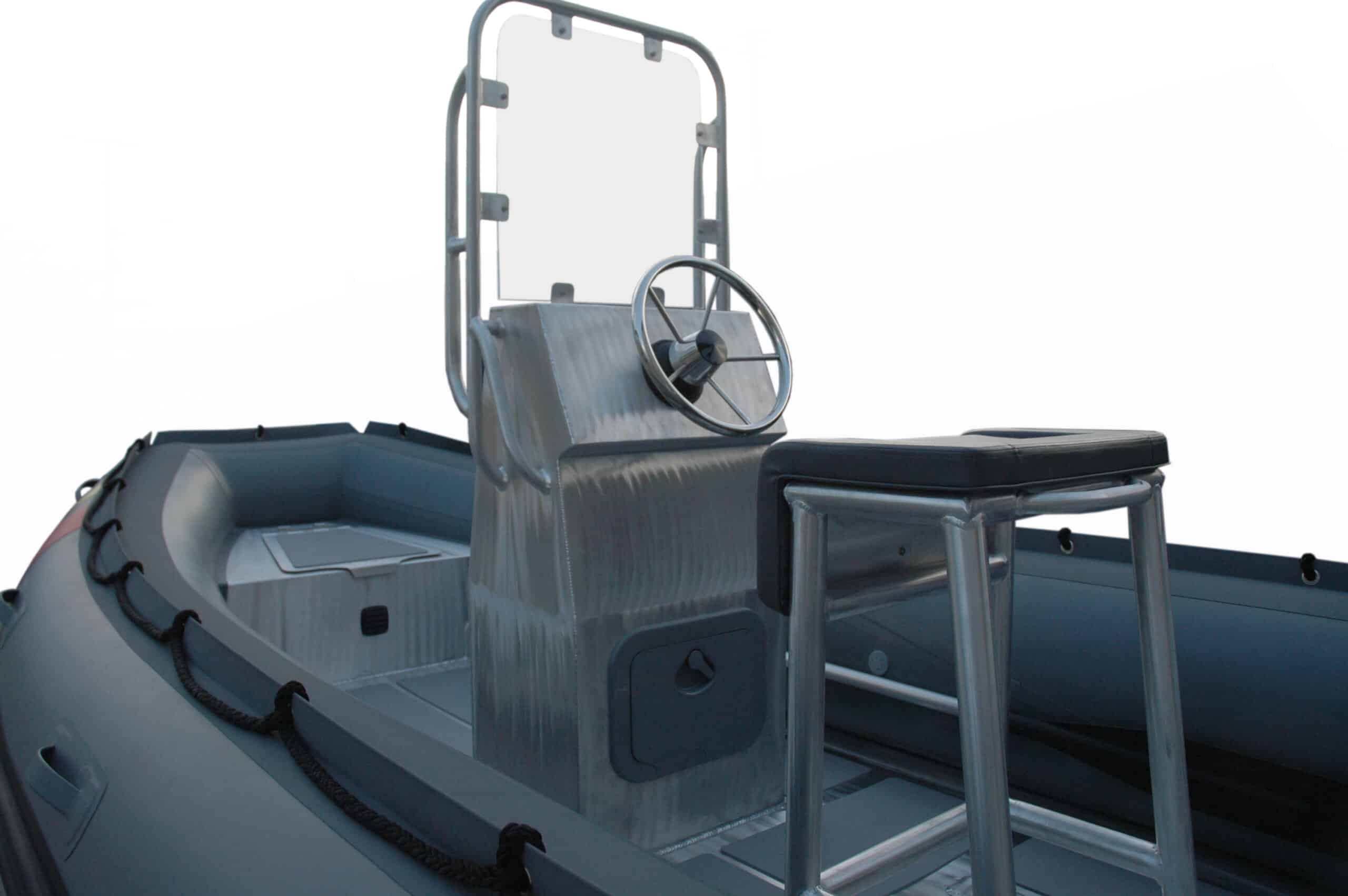

- Aluminum Console
- Customized Aluminum Consoles, Jockey Consoles & Seats
- Mechanical or Hydraulic Steering System
- Stainless Steel Steering Wheel
