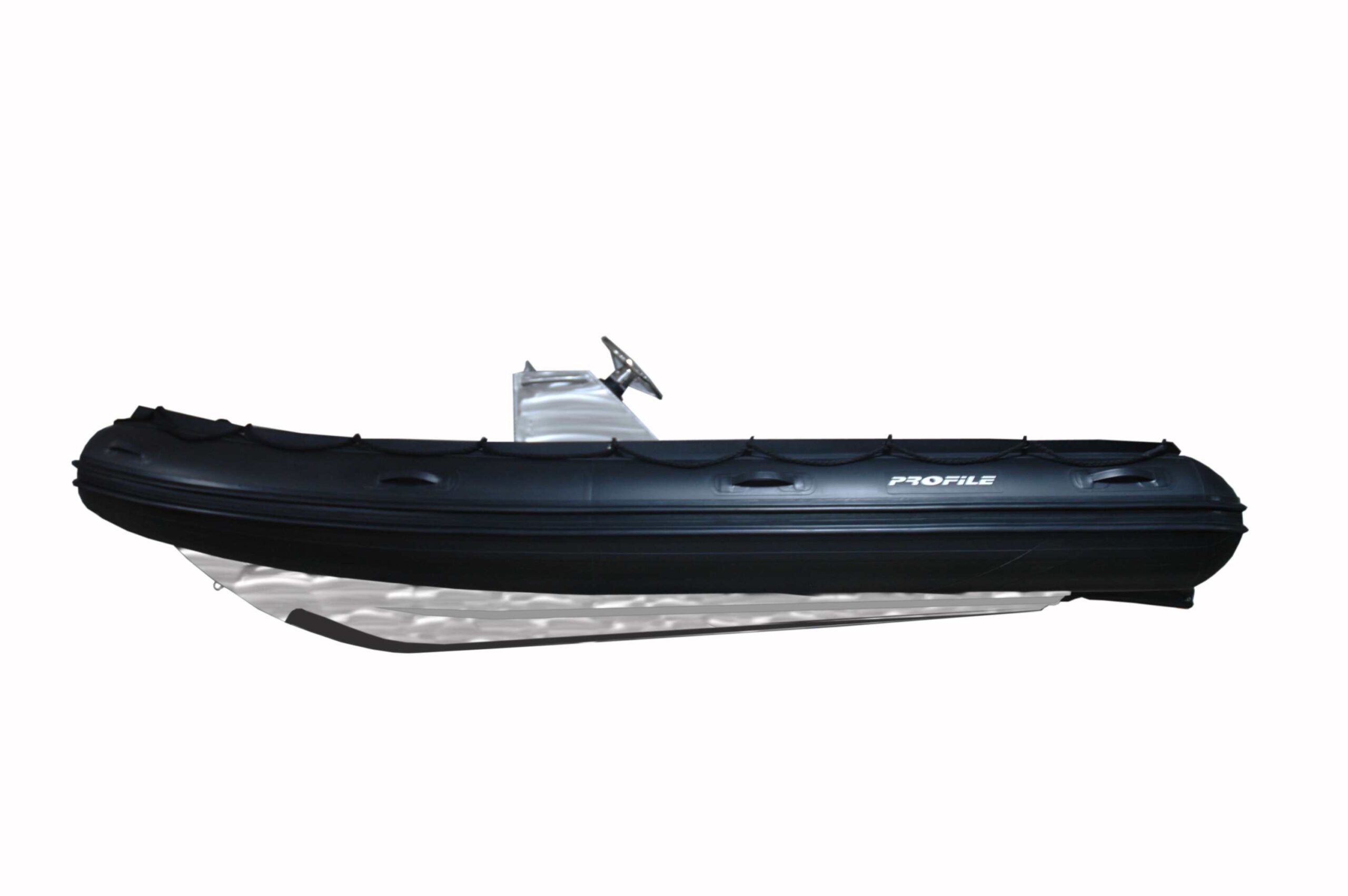

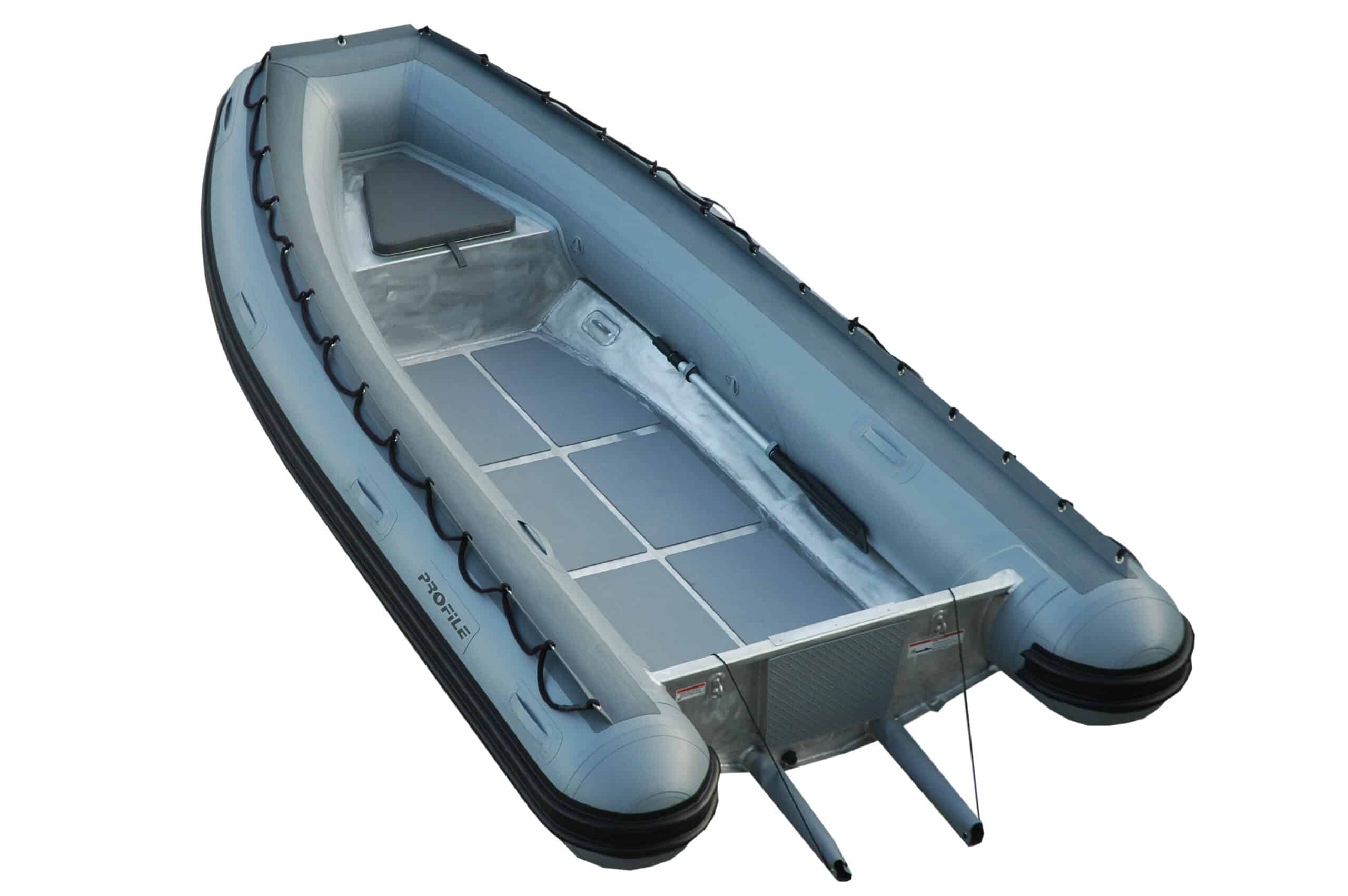

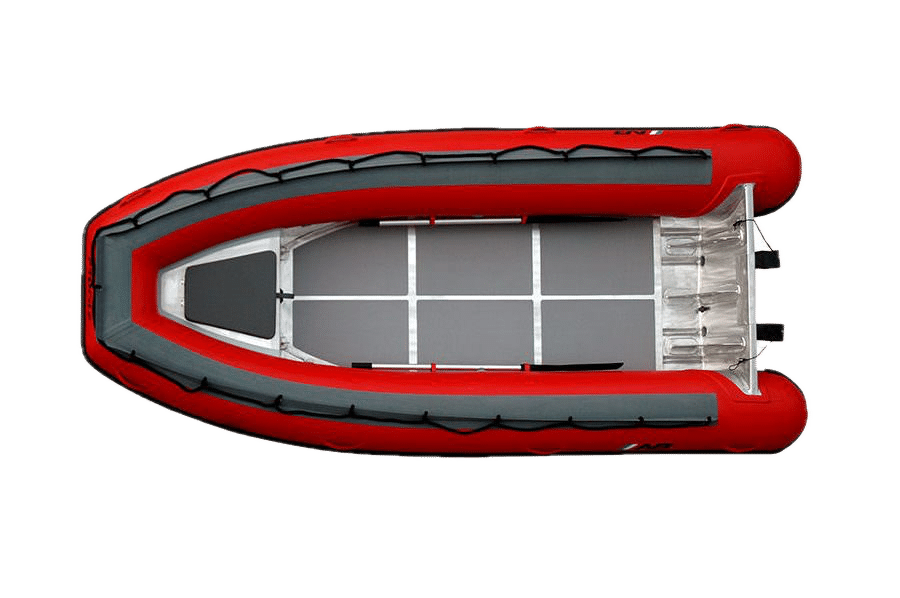

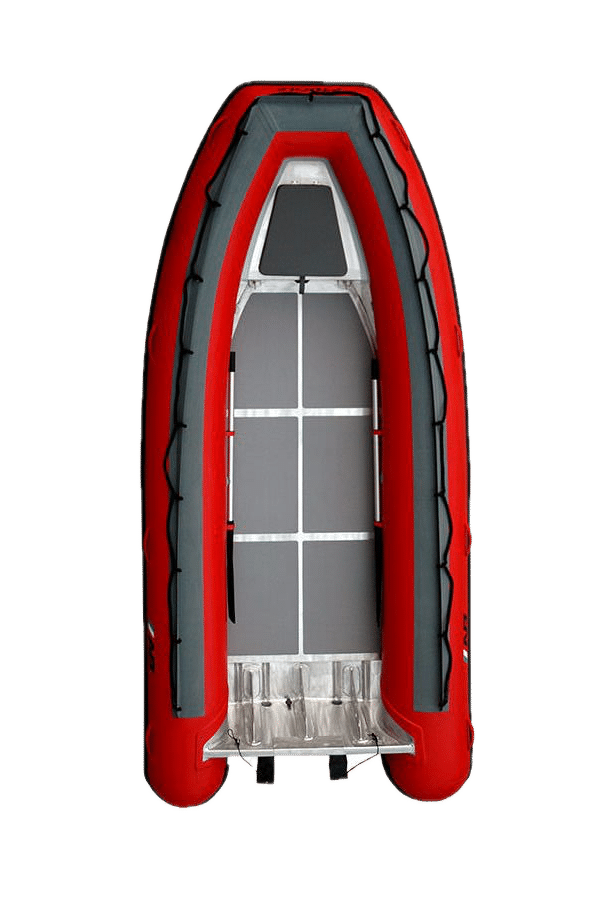

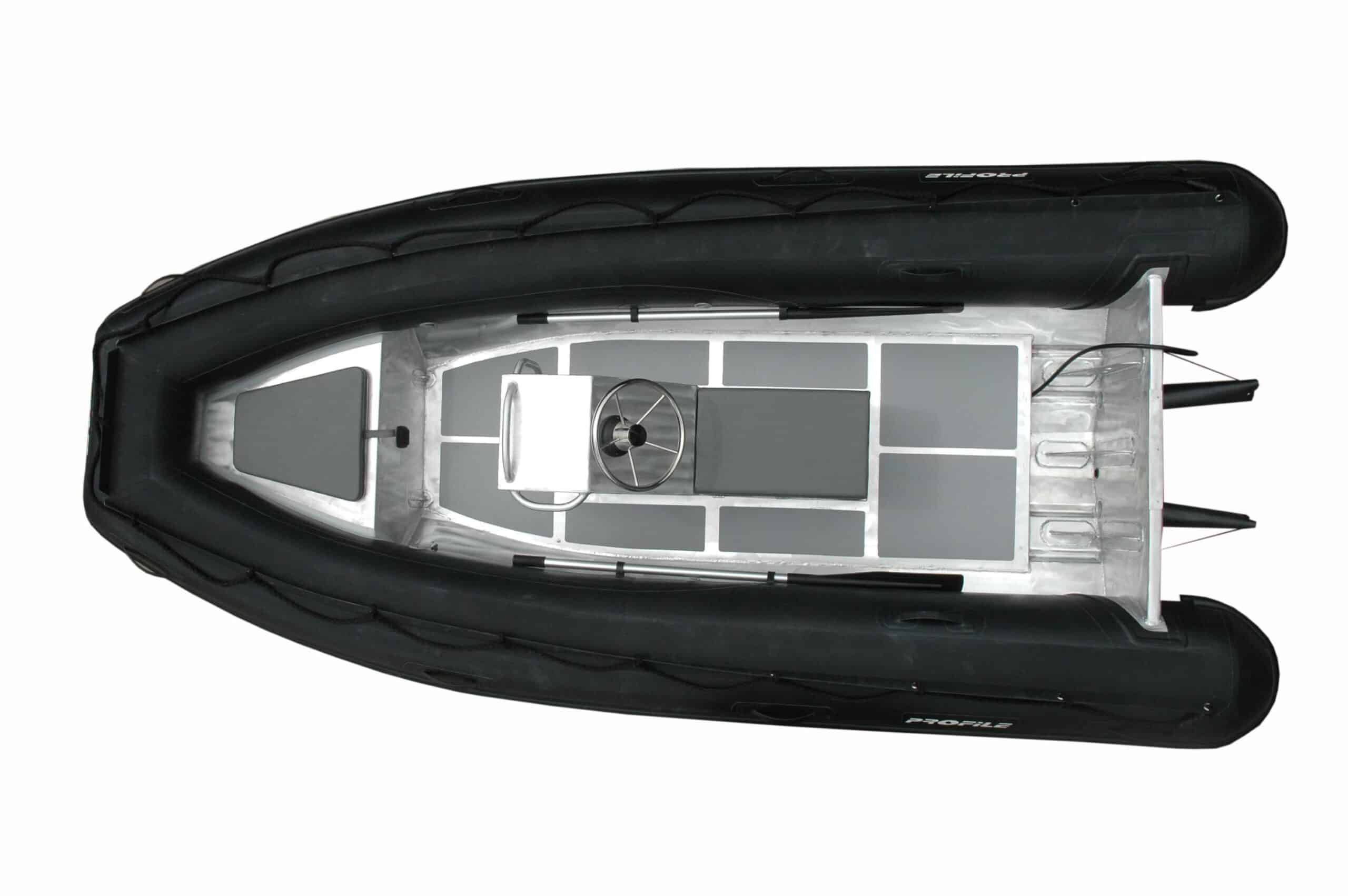

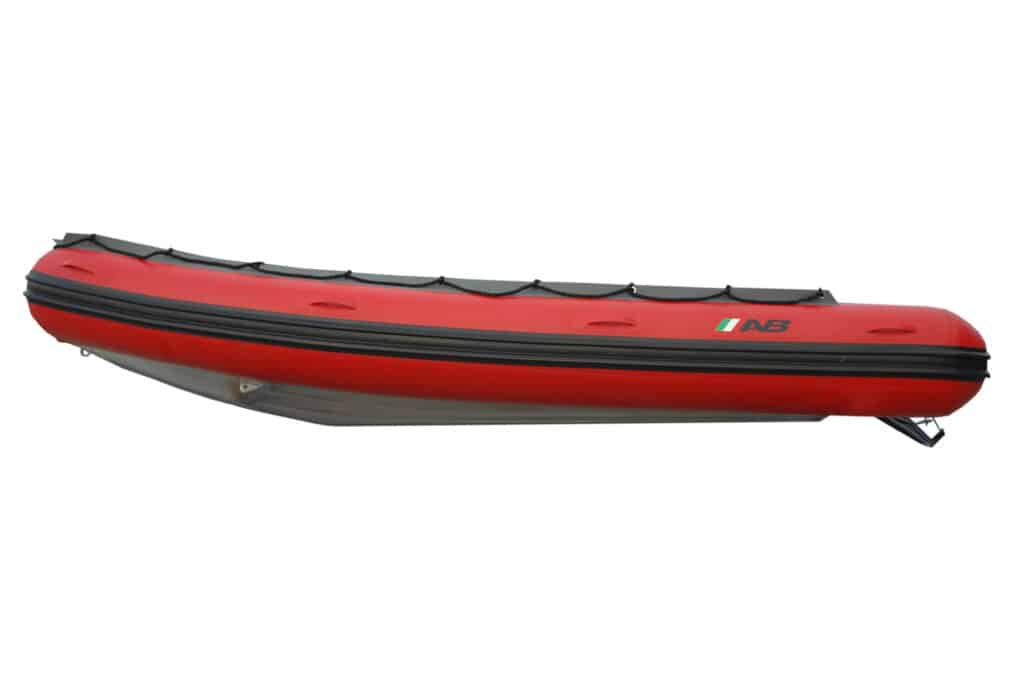

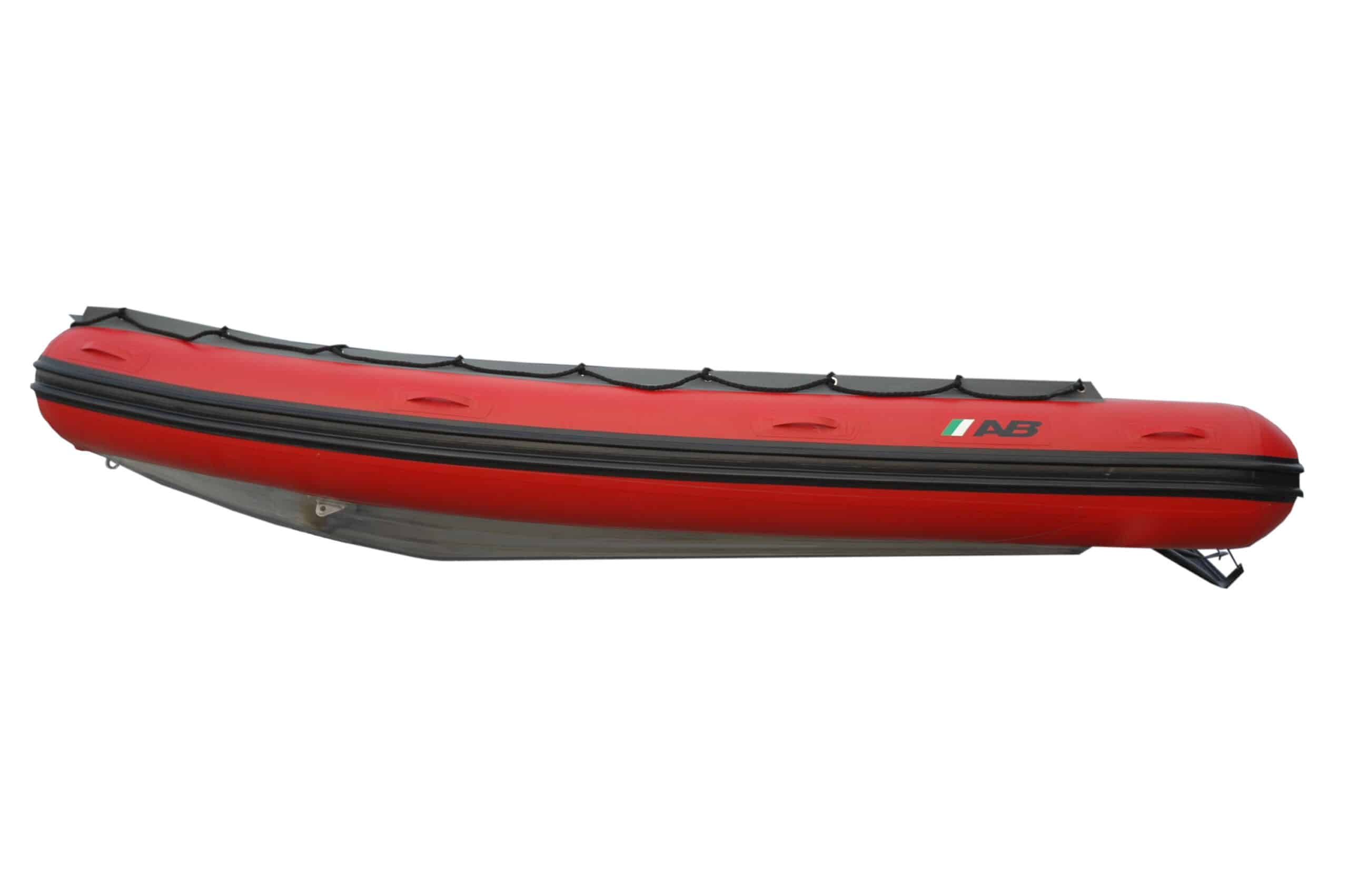

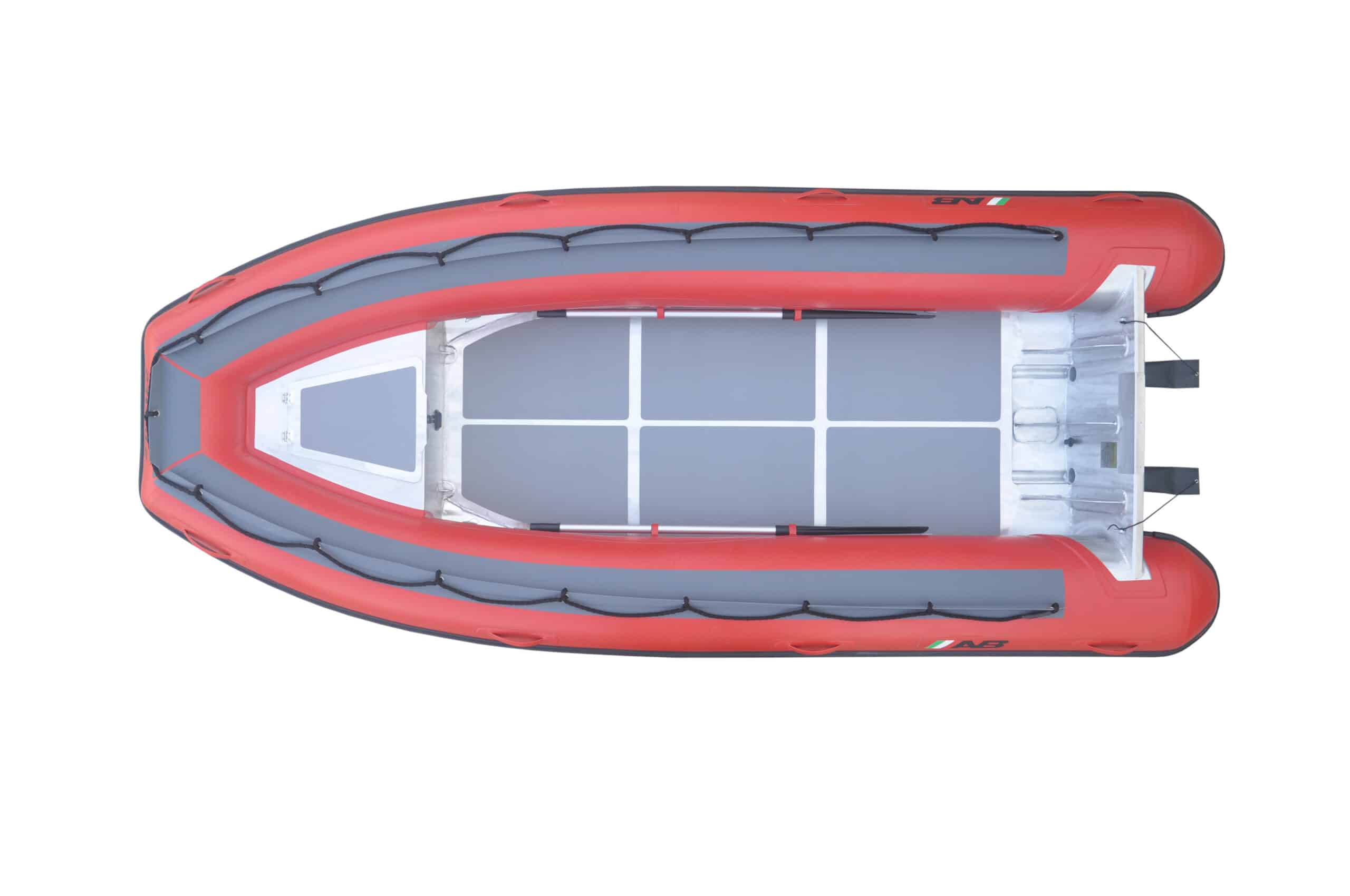

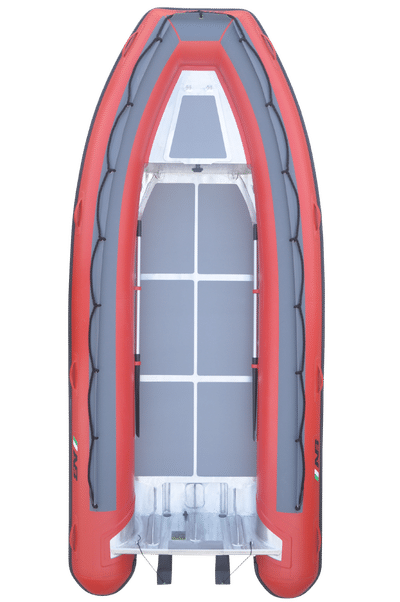

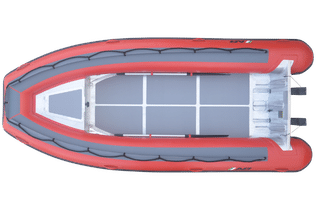

Profile A
A14
PROFESSIONAL ALUMINUM BOATS
Professional grade and purposefully-built, prepared to take you on any task.
Learn more
Key Features
- Ventilation on Bow Locker
- Large Square Transom Alum. Reinforced Base
- Non-skid (CSM) Fabric on Tube
- More Payload Capacity
- More Internal Area
- Optional B.Locker - 6 Gal portable F. tank
- Pressure Relief Valves
- Ultra High Quality Welding
- Bow U bolt and lateral towing eyes
- Double Solid Rubrail
- New Heavy Duty Keel Protector
- "V" Hull
- 1670 D-Tex ORCA (CSM) Coated Fabric
- Sunbrella Fabric Boat Cover Available
- Reinforced Alum. Lifting Eyes with SS Rings
- Internal Aluminum Plate with Security Lip
- Reinforced (CSM) Fabric Handles

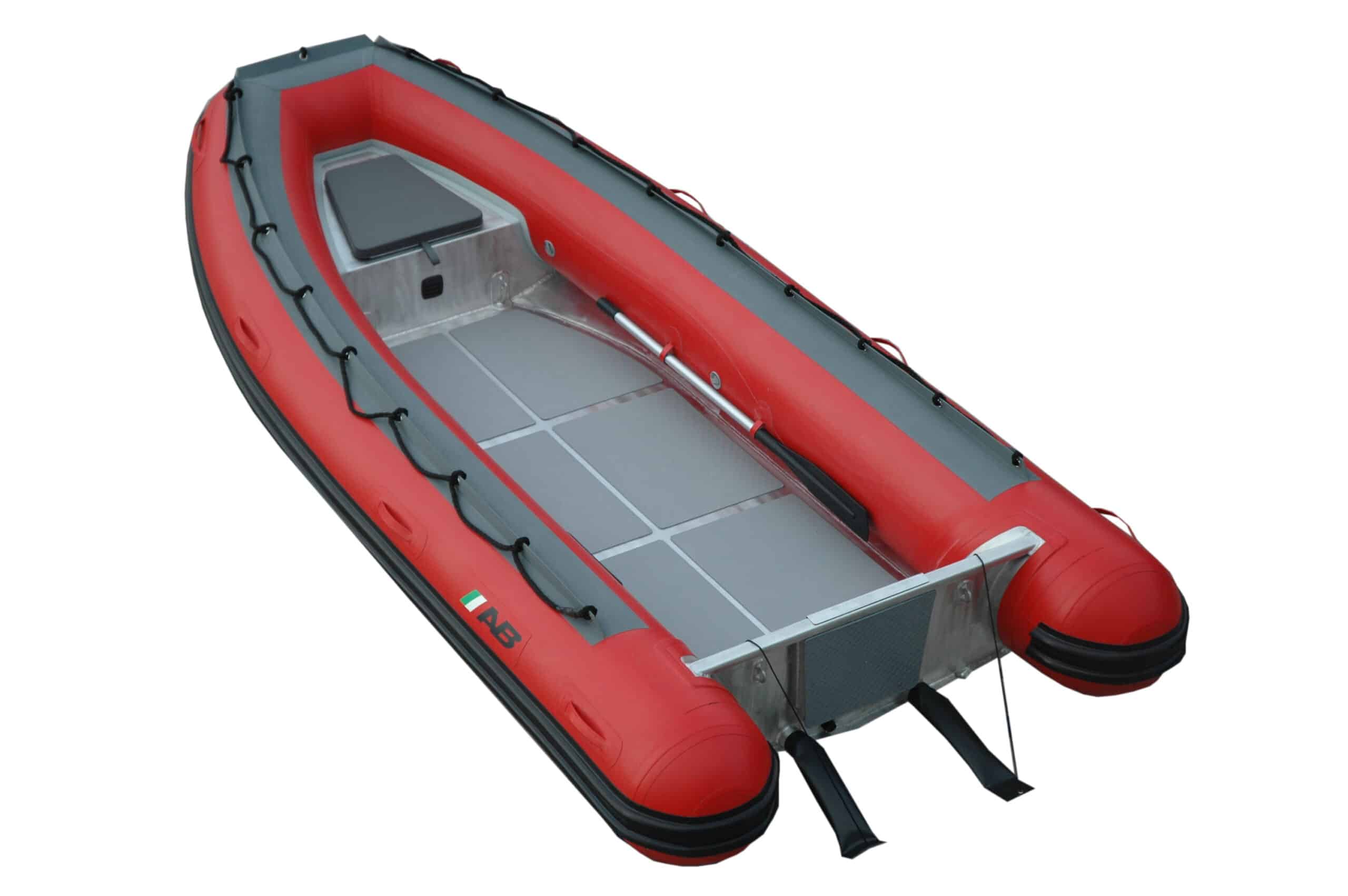

- Custom Colors Upon Request
- Non-skid Rubber Floor
- Reinforced Alum. Transom Towing Eyes w/ SS Rings
- Reinforced Alum. Transom Tie Downs w/ SS Rings
Specs
- Overall length14’ / 4,27m
- Overall Beam 6’7’’ / 2m
- Inside Length 10’10’’ / 3,3m
- Inside Beam 3’3’’ / 0,99m
- Tube Diameter 19’’ / 0,48m
- Person Capacity 8
- Weight 287 lbs / 130 kg **
- Weight with Bow Locker 305 lbs / 138 kg
- Recommended HP 40hp / 29.8kw
- Maximum HP 50hp / 37,3kw
- Shaft length 20’’ / 50,8cm
- RDC Design Category C
- Deadrise 18°
- Aluminum Hull Thickness 0.125 in / 3.18 mm
- Aluminum Transom Thickness 0.190 in / 4.78mm
(**) Weight spec applies for models without bow locker
Add 5 kg / 11 lbs for model 11
Add 7 kg / 15 lbs for models 12-16
Standard Equipment
- Deep "V" Marine Grade Aluminum Hull
- 3 Heavy Duty Transom Knees
- Welded Aluminum Stringer System
- Non-Skid Rubber Floor Panels
- Plastic External Transom Plate
- Aluminum Internal Transom Plate
- Aluminum Bow Eye
- 3-4 Aluminum Davit Lifting Points
- Reinforced Aluminum Transom Tie Down & Towing Rings
- Aluminum Bow Tie Down & Towing Rings
- Deck Drain with Plug
- Orca (CSM) 1670 Five Layer Coated Professional Use Fabric
- Raised Double Solid Rub Rail
- Push Plastic Non-Corrosive 2 Stage Inflation Valves
- Pressure Relief Valves
- 1 Front & 4 Side Orca (CSM) Heavy Duty Fabric Handles on Tubes
- Paddles with Aluminum Shaft
- Paddle Holders
- Hand Pump
- Maintenance Kit
- Owner´s Manual
- 4 Layers Reinforced Seams
- Rubber Protector on Full Length of Keel
- 3 Inch Drain Scuppers
- Non-Skid (CSM) Coated Fabric On Tube Surface
- Lifeline Around Tube
Optional Equipment
- Bow Locker/Seat with Vent & Storage to Fit a 6 Gal Portable Fuel Tank
- Portable 6 gal Fuel Tank Installed in Bow Locker with Fittings
- Boat Cover
- Bow Step with Fold Down Stainless Steel Cleat
- Lateral Fold Down Stainless Steel Cleat

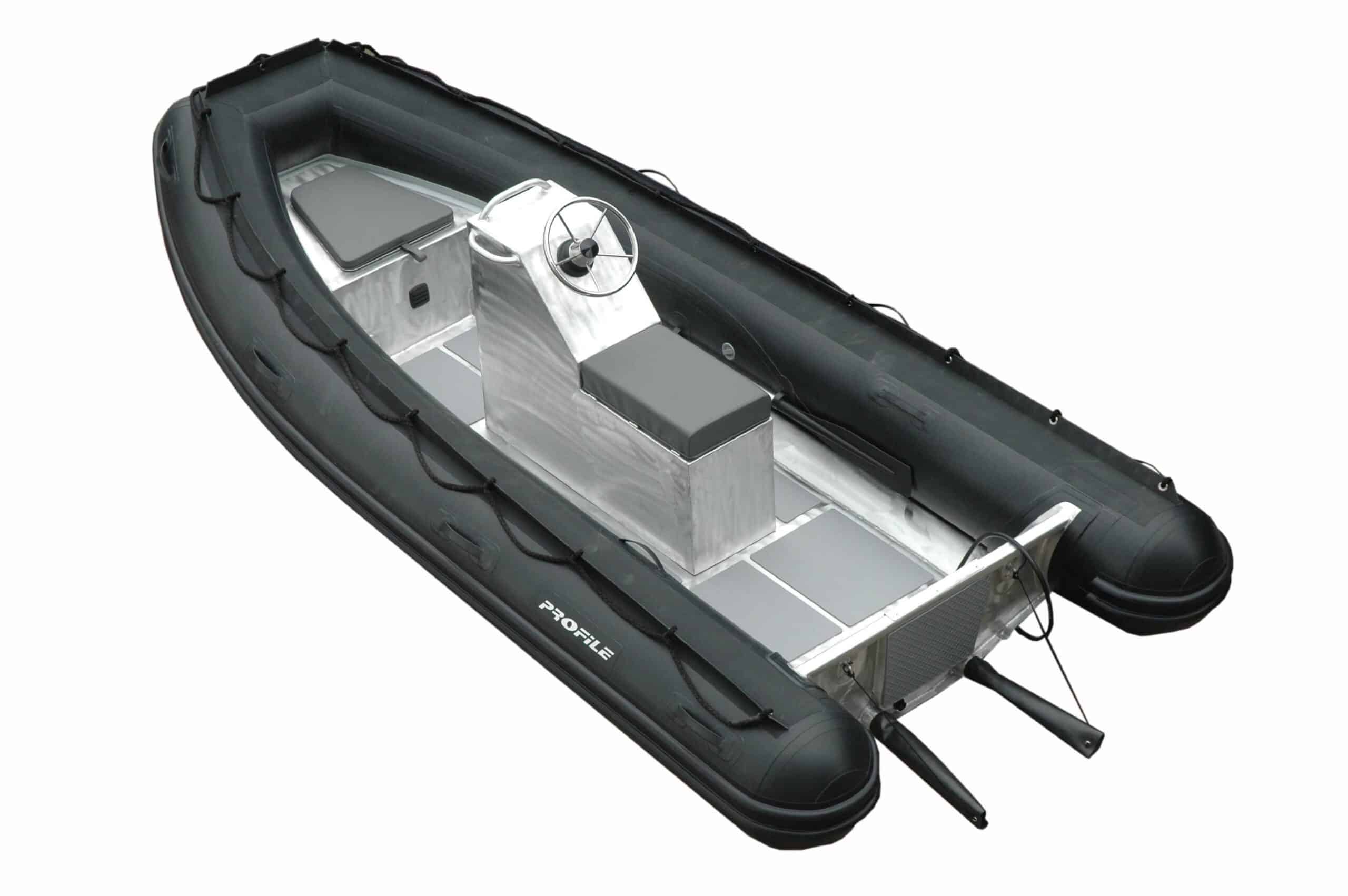

- Fiberglass Console
- Fiberglass Console with Forward Seat
- Bench Seat with Storage

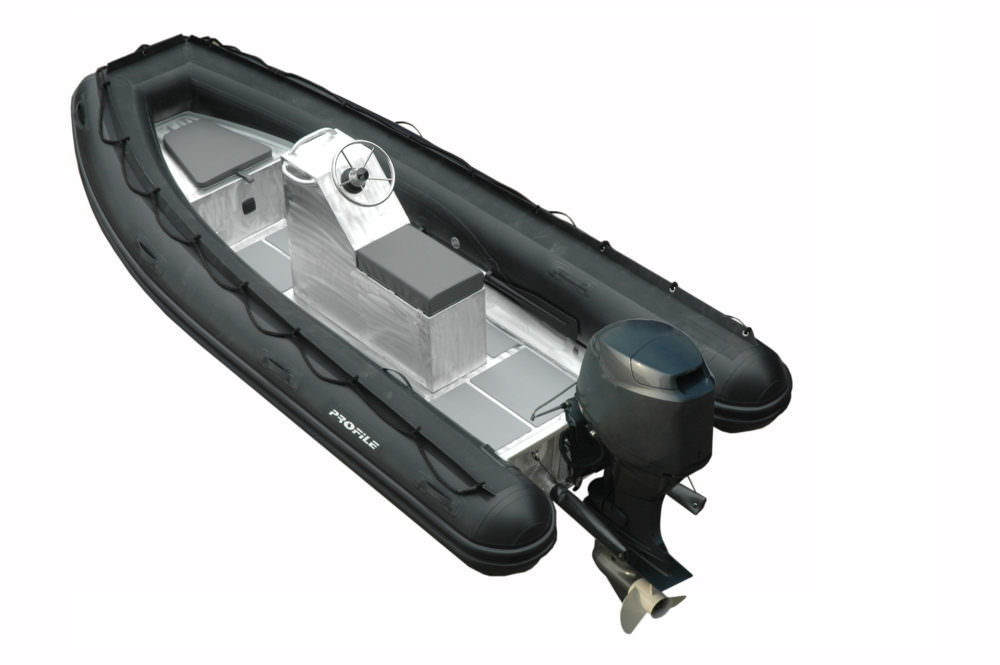

- One Person Jockey Console
- Two Person Jockey Console
- Aluminum Console
- Customized Aluminum Consoles, Jockey Consoles & Seats
- Mechanical or Hydraulic Steering System
- Stainless Steel Steering Wheel
